15/05/2024

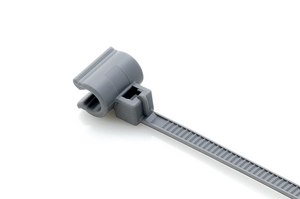

Fixing tie with pipe/tube holder, Ø35.0mm, natural, 500pcs.
Art.-Nr. 148-00100 | Bracket brake line-PA66HS-NA |  Details

Fixing tie for multiple routing and post-installation of bundles.

    • Easily locks onto a cable, tube or hose (D = 4.8 – 5.4 mm)
    • Cable tie head always in defined position
    • Suitable for post-installation of bundles
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
    Colour Natural (NA)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features removable, for multiple routing
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION Bracket brake line-PA66HS-NA
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family Bracket brake line
    Product Group 1-piece fixing tie with pipe clip
    Releasable Closure (Yes/No) No
    Type Bracket brake line
    Attach to Ø 4.8 - 5.4
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 35.0mm
    Height (H) 1.2mm
    Length (L) 150.0mm
    Min.Tensile Strength 133N
    Nominal ∅ 5.1mm
    Weight/Unit 0.001139kg
    Width (W) 3.6mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026228549
    Packaging 1 - Height (m) 0.04m
    Packaging 1 - Length (m) 0.255m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00306m³
    Packaging 1 - Weight (kg) 0.5695kg
    Packaging 1 - Width (m) 0.3m
    Packaging 3 - Height (m) 0.538m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.1213m³
    Packaging 3 - Weight (kg) 12.49kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.22m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 80000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.171m³
    Packaging 4 - Weight (kg) 120.92kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
