15/05/2024

Connector clip, EWCAP-005-11, black, 5000pcs.
Art.-Nr. 151-02206 | CC16R-PA66HIRHSUV-BK |  Details

Oval fir tree ensures a tight connection without rotation.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION CC16R-PA66HIRHSUV-BK
    Pack Cont. 5000pcs.
    Package Content packed in carton
    Product Family With FirTree
    Product Group Connector Clips for Oval Holes

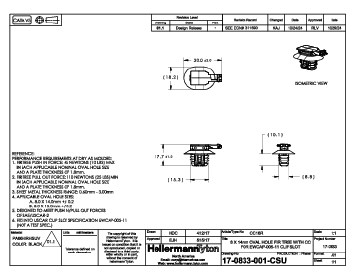

    Type CC16R
    Fixing Hole Shape Oval
    Height (H) 23.4mm
    Height (H2) 15.8mm
    Length (L) 30.0mm
    Panel Thickness max. 0.6 - 3.0mm
    Weight/Unit 0.001369kg
    Width (W) 18.2mm
    for Hole ∅ (FH) 8.0 x 14.0 mm, 8.0 x 15.0 mm
    for Panel Thickness min - max 0.6 - 3 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026604930
    Packaging 1 - Height (m) 0.14m
    Packaging 1 - Length (m) 0.595m
    Packaging 1 - Qty 5000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.03207m³
    Packaging 1 - Weight (kg) 6.845001kg
    Packaging 1 - Width (m) 0.385m
    Packaging 3 - Height (m) 0.21589999999999998m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Weight (kg) 7.705001kg
    Packaging 3 - Width (m) 0.396875m
    Packaging 4 - Height (m) 1.224m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 75000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.175m³
    Packaging 4 - Weight (kg) 136.575kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
