Bundling clip for hole (round), L=54.0mm, black, 500pcs.
Art.-Nr. 151-00078 | CHA1-PA66HS-BK |  Details

Perfect for securing cable bundles, hoses or pipes.

    • Easy to install without the need for a tool
    • Horizontal length tolerance compensation
    • Ideal if holes do not fit registration or bundles need to be routed round corners
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application An easy means of routing and securing cable sets in various parts of cars. These parts allow an adjustment motion to guide cable bundles safely and without damaging the cable insulation.
    Colour Black (BK)
    Fixation Method arrowhead
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION CHA1-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family for lateral adjustment
    Product Group Bundling clips for round holes with arrowhead
    Type CHA1

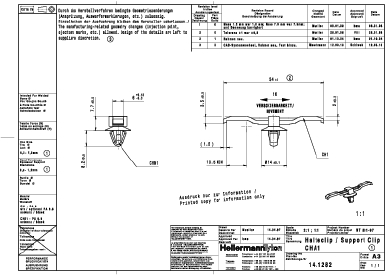

    Bundling Bar Length 54.0mm
    Height (H) 7.7mm
    Height (H2) 8.2mm
    Length (L) 54.0mm
    Width (W) 6.0mm
    for Hole ∅ (FH) 6.3 - 7.0 mm
    for Panel Thickness min - max 0.5 - 1.2 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026312866
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
