29/05/2024

Cable tie mount for hole (round), Ø10.8 - 11.2 mm, black, 500pcs.
Art.-Nr. 151-01378 | FT11-PA66HIRHS-BK |  Details

    • Supports a wide range of panel thickness in one size by the wiring fixture for the panel hole insertion which contributes to the reduction in the number of parts.
    • For the unique shape of the fir tree, it corresponds to a wide plate thickness in one size.
    • You can use both through hole, a female thread.
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Fixing on Panels. The dome type structure, prevent intrusion of dust, even after attaching to the panel.
    Application Tool ProCut 9 no battery, MK9P, MK9P w/ Upper air, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
    Colour Black (BK)
    Fixation Method with Fir Tree (Mounts)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION FT11-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family FT Series
    Product Group Fir tree mount
    Type FT11

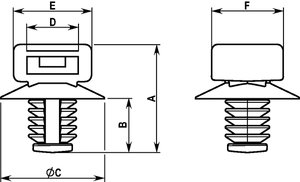

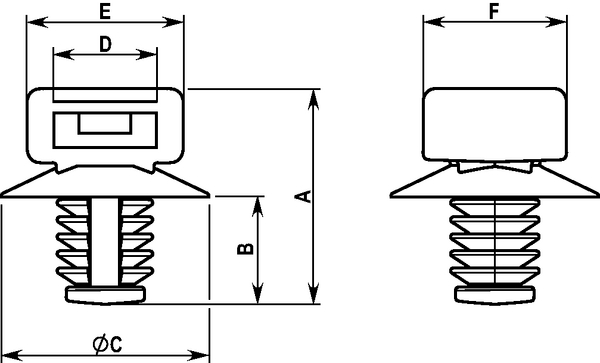

    Disc ∅ 16mm
    Length (L) 29.6mm
    Width (W) 23.0mm
    for Hole ∅ (FH) 10.8 - 11.2 mm
    for Panel Thickness min - max 1 - 10 mm
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026522777
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
