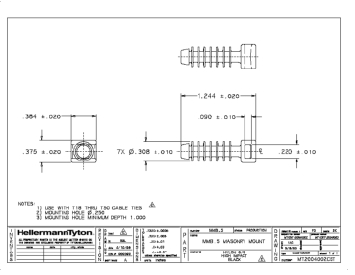

Cable tie mount to close hole/for edge protection, T=25.4mm, Ø6.35 mm, black, 100pcs.
Art.-Nr. 151-00116 | MMB.5-PA66STHS-BK |  Details

LOK01, LOK01B, LOK01S fixing bases.

    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Application Tool ProCut 9 no battery, MK9P, MK9P w/ Upper air, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
    Colour Black (BK)
    Fixation Method Threaded bolt
    For Ties T18 - T50
    Material Polyamide 6.6, super tough, heat stabilized (PA66STHS)
    PART DESCRIPTION MMB.5-PA66STHS-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Type MMB.5
    Height (H) 9.40mm
    Hole Depth 25.4mm
    Length (L) 31.5mm
    Panel Thickness max. 25.4mm
    Strap Width max. (G) 0.18"
    Strap Width max. (G) 4.6mm
    Weight/Unit 0.0011kg
    Width (W) 9.5mm
    Width (W2) 5.6mm
    Width (W3) 7.8mm
    Width of Fixing WF (metric) 7.7mm
    for Hole ∅ (FH) 6.35 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026421544
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.110001kg
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Qty 9000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Weight (kg) 10.52009kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Height (m) 1.209m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 180000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.161m³
    Packaging 4 - Weight (kg) 231.4kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
