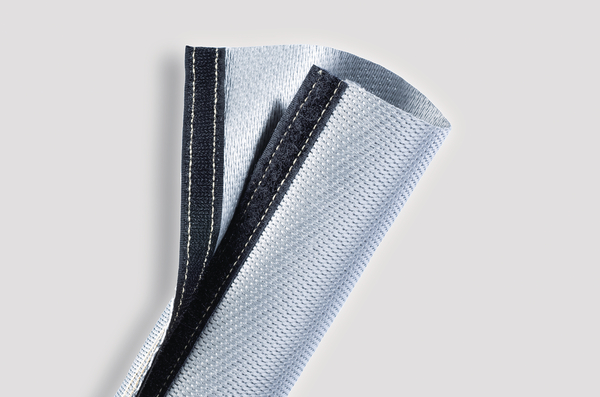

Helagain WS series
Art.-Nr. 170-04103 | WS80-SiO2-SR Details

  • Since Silicone is used for material, it has excellent heat resistance.
  • Detachable protective sleeving with hook-and-loop seal, easily attached to existing cables and piping
  • Silicone coated makes it easy to repel sparks and slags.

Request your individual offer now

Application to protect the electric wires of moving parts, on welding robots and grinding robots, to protect the electric wire from sparks and slags in welding and forging sites.
Colour Silver (SR)
Material Silica (SiO2)
Open, post termination (Yes/No) No
PART DESCRIPTION WS80-SiO2-SR
Pack Cont. 15.24m
Package Content packed in reel
Product Family Helagain WS series
Product Group Protects cables from sparks during welding
Type WS80

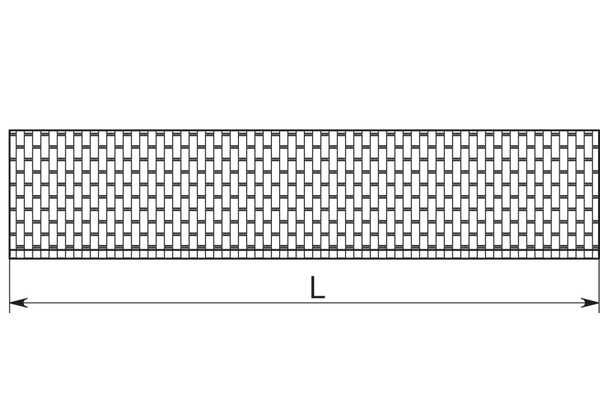

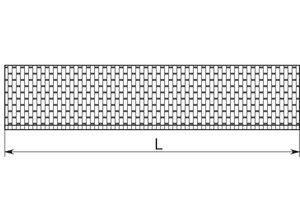

Length (L) 15.24m
Wall (WT) 1.3mm
CE Certification No
Operating Temperature -54 °C to +260 °C
ROHS compliant Yes
Specifications
Country of Origin US
GTIN-13 / EAN 4944387115635
ETIM 7.0 Key EC001182
ETIM 8.0 Key EC001182
ETIM 9.0 Key EC001182
UNSPSC Key 39131602
