18/05/2024

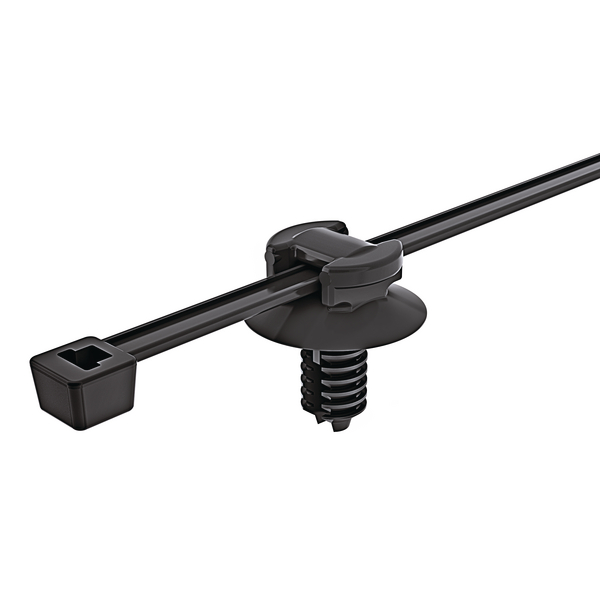

Fixing tie for hole (round), inside serrated, Ø35.0mm, black
Art.-No. 156-00336 | T30RATSFT5LGSET-PA66HS/PA66HIRHS-BK |  Details

These fir tree fixings can also be used in threaded, blind holes.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Tool MK3PNSP2, MK3SP, MK20, EVO7, EVO7SP, EVO7i
    Colour Black (BK)
    Content 1000 T30R & 1000 ATSFT5LG
    Fixation Method Fir Tree
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T30RATSFT5LGSET-PA66HS/PA66HIRHS-BK
    Package Content packed in bag
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T30RATSFT5LGSET
    Variant Inside Serrated
    Bundle Diameter max (metric) 35.0mm
    Panel Thickness max. (imperial) 0.3"
    Panel Thickness min. (imperial) 0.03"
    for Hole ∅ (FH) 4.5 - 5.0 mm
    for Panel Thickness min - max 0.7 - 8 mm
    for Panel Thickness min - max 0 - 0.3 "
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026287164
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 6.6kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 179.4kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121717
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
