16/05/2024

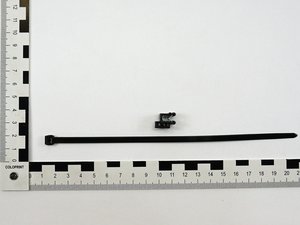

Fixing tie for edge, outside serrated, Ø4.0-45.0mm, black, 500pcs.
Art.-No. 150-02500 | T50ROSEC5SET-PA66HS/PA66HIRHS-BK |  Details

T50ROSEC10 fitted onto a plastic panel to hold a Ø 6 mm harness.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
    Colour Black (BK)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50ROSEC5SET-PA66HS/PA66HIRHS-BK
    Pack Content 500pcs.
    Package Content packed in pcs.
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50ROSEC5SET
    Variant Outside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ min. 4.0mm
    Height (H) 1.3mm
    Height (H2) 15.5mm
    Length (L) 200.0mm
    Length (L2) 14.0mm
    Min.Tensile Strength 225N
    Width (W) 4.6mm
    Width (W2) 10.0mm
    for Panel Thickness min - max 1 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026228136
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 6.280896kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 80000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 146.64kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121731
    Show all
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
