Identification ties and plates for marking cable bundles
Art.-No. 151-00882 | AT3-PA66W-BK Details

  • Blank nylon arrowhead shape plate fixed with a cable tie
  • Identify with a T82 pen or Ovalgrip markers
  • AT1 for 7 size 50 Ovalgrip markers
  • AT2 for 8 size 85 Ovalgrip markers
  • AT3 for 14 size 85 Ovalgrip markers
  • Custom printed plaques are available on request
Show more

Request your individual offer now

Application The plates are suitable for applying to larger pipes and cables before or after termination has taken place. They can be marked with Ovalgrip markers or manually using the T82 series of indelible markers pens.
Colour Black (BK)
Fixation Method Others
Identification Plate Position attached to bundle
Marker tiles per carrier 14
Material Polyamide 6.6, UV-resistant (PA66W)
PART DESCRIPTION AT3-PA66W-BK
Pack Content 500pcs.
Package Content packed in bag
Product Family Arrowtag
Product Group Identification ties and plates for marking cable bundles
Recommended Labels HO85 / EMC
Recommended Ovalgrip Size 85
Type AT3
Variant Other
With label space Yes

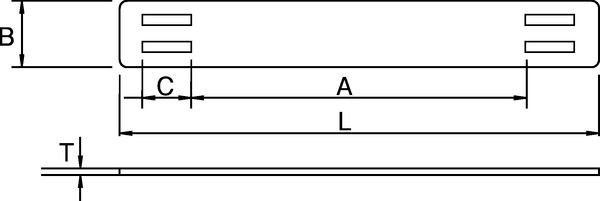

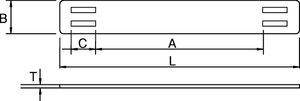

Length (L) 100mm
Max. Tie Width (G) 6.40mm
Width (W) 9.00mm
Flammability UL 94 V2
Halogen-free Yes
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
GTIN-13 / EAN 7890176058300
