04/06/2024

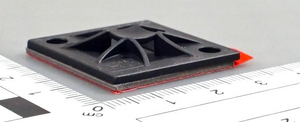

Cable tie mount for adhesive use, Ø4.1 mm, black, 100pcs.
Art.-No. 151-02974 | QM30APT-A-PA66-BK 세부

  • Q-mounts with homogeneous system of acrylic adhesive
  • Perfect for combination with T-Series cable tie
  • Very good initial adhesion, increases with time
  • Innovative fixing solution for high and low energy surfaces
  • Q-Mount base locks the cable tie in vertical position, means the hands are free to apply cables
Show more
Application Q-mounts are ideally suited for holding our innovative Q-ties in place. They would perfectly fit to all applications where a reliable and durable fixation is required. With its SolidTack adhesive Q-mounts offer an innovative fixing solution especially for low energy surfaces or if drilling a hole is not possible. Suitable for a wide range of applications on varnished or plastic or metal surfaces in many areas like electrical cabinet, railway, aerospace, automotive and agriculture machinery.
Articolo QM30APT-A
Colore Nero (BK)
Cont. conf. 100Pz.
Descrizione Breve Basetta adesiva 30x30 nero QM30APT
GLOBAL PART DESCRIPTION QM30APT-A-PA66-BK
Materiale Poliammide 6.6 (PA66)
Metodo di fissaggio Montaggio a vite e adesivo
Prodotto: Categoria Basette con adesivo speciale
Prodotto: Famiglia Serie QM SolidTack
Quantità per confezione
Altezza (H) 4.5mm
Centro foro fiss. (F) 21.0mm
Largh. (W) 30.0mm
Largh. max fascetta (G) 5.1mm
Lungh. (L) 30.0mm
Peso Netto 0.00204kg
∅ foro fiss. (FH) 4.1 mm
Adesivo Acrilato con fondo di schiuma acrilica
Certificazioni
Conformità RoHS
Infiammabilità UL 94 V2 (escluso adesivo)
Temp. di esercizio - °C da -40 °C a +85 °C
Zero Alogeni
Codice EAN 4031026626031
Codice doganale 39269097
PL1_Dim. Altezza 0.025m
PL1_Dim. Larghezza 0.22m
PL1_Dim. Lunghezza 0.25m
PL1_Peso 0.21298kg

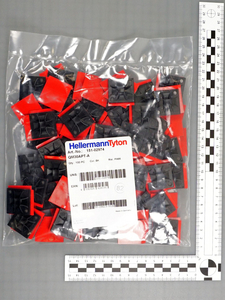

PL1_Quantità 100
PL1_Tipologia confezione
PL1_Volume 0.00138
PL3_Dim. Altezza 0.204m
PL3_Dim. Larghezza 0.398m
PL3_Dim. Lunghezza 0.591m
PL3_Peso 11.264kg
PL3_Quantità 5000
PL3_Tipologia scatola
PL3_Volume 0.048
PL4_Dim. Altezza 1.164m
PL4_Dim. Larghezza 0.8m
PL4_Dim. Lunghezza 1.2m
PL4_Peso 246.3kg
PL4_Quantità 100000
PL4_Tipologia pallet
PL4_Volume 1.117
Paese d'origine DE
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
