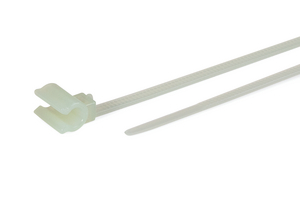

Fixing tie with pipe/tube holder, Ø35.0mm, grey, 500pcs.
Nr. articol 148-00101 | Bracket brake line-PA46-GY |  Detalii

Brake cable fixing suitable for post installation of bundles.

    • Easily locks onto a cable, tube or hose (D = 4.8 – 5.4 mm)
    • Cable tie head always in defined position
    • Suitable for post-installation of bundles
    • Insideserrated Cable Tie
    Adăugați la lista de urmărire

    Solicitați acum oferta dumneavoastră individuală

     Solicitați oferta
    Downloads
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
    Colour Grey (GY)
    Identification Plate Position none
    Key product features removable, for multiple routing
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION Bracket brake line-PA46-GY
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family Bracket brake line
    Product Group 1-Piece Fixing Ties with Pipe Clip
    Releasable Closure (Yes/No) No
    Type Bracket brake line
    Attach to Ø 4.8 - 5.4
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 35.0mm
    Height (H) 1.2mm
    Length (L) 150.0mm
    Min.Tensile Strength 133N
    Weight/Unit 0.001107kg
    Width (W) 3.6mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026230979
    Packaging 1 - Height (m) 0.04m
    Packaging 1 - Length (m) 0.355m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00504m³
    Packaging 1 - Weight (kg) 0.5695kg
    Packaging 1 - Width (m) 0.355m
    Packaging 3 - Height (m) 0.538m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.1213m³
    Packaging 3 - Weight (kg) 12.49kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.22m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 80000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.171m³
    Packaging 4 - Weight (kg) 120.92kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
