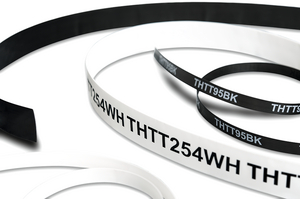

Heat shrink marker, thermal transfer print, continuous, 3.2mm/1.6mm, black, 110m
Art.-No. 551-41110 | THTT32BK-PVDFX-BK Details

This product is not available anymore.
  • Shrink ratio 2:1
  • PVDFX high temperature tube
  • Thermal transfer or laser beam printable
  • Available in white and black as standard
  • Good mechanical strength and highly flexible
  • Delivery in convenient storage boxes
Show more

Request your individual offer now

Application THTT is a 2:1 high temperature, flame retardant heat shrink marker supplied in continuous tube and on convenient reels that allows printing on both sides if required. The printed marker is ideal for use in applications where high temperature and exposure to aggressive solutions are found. The tubing has been especially prepared so that the print performance is excellent at all times using HellermannTyton's printer range. A standard heat gun with reflector is used to shrink the sleeves onto the wire or cable to achieve a permanent mark. In addition it is possible to either perforate the tubing at pre-determined lengths or fully sever the markers. The material is also especially formulated to be printable with laser beam printers.
Behaviour at low Temperature test method ASTM D2671
Colour Black (BK)
Fixation Method Suspend
Heat Aging Test 168h/225°C
Heat Aging test method ASTM D638
Heat Shock Test 4h/275°C
Material Polyvinylidene Fluoride cross-linked (PVDFX)
PART DESCRIPTION THTT32BK-PVDFX-BK
Pack Content 110m
Package Content packed in carton
Printable Yes
Product Family THTT – 2:1 Aerospace High Temperature
Product Group Shrinkable markers "Continuous Tube", thermal transfer
Shrink Ratio 2:1
Type THTT32BK
Variant Roller form
With inner glue (Yes/No) No
With label space Yes
Height (H) 6.0mm
Longitudinal Change After Shrinkage -10% max.
Longitudinal Change After Shrinkage test method UL 224
Print Method thermal transfer print
Print Method (Alternative) laser beam print
Recov. ∅ d max. 1.6mm
Supplied ∅ D min. 3.2mm
Wall (WT) 0.25mm
ELV compliant (Article 4 - 2) YES
Elongation at break 300 %
Elongation at break test method ASTM D638
Hazardous Goods No
Min. Shrink Temperature - °C +120 °C
Operating Temperature -55 °C to +225 °C
ROHS compliant Yes
Recommended Ribbon Type TTRHT
Reel Variant continuous
Specifications
Specifications MIL-STD-202G Method 215K, SAE - AS81531
Tensile Strength 31MPa
Test Method Tensile Strength ASTM D638
Volume Resistance 10¹² Ω cm
Volume Resistance test method ASTM D876
Water Absorption 0.50%
GTIN-13 / EAN 4031026579184
Packaging 1 - Height (m) 0.01m
Packaging 1 - Length (m) 0.16m
Packaging 1 - Qty 22
Packaging 1 - Type reel
Packaging 1 - Volume (m³) 0.00026
Packaging 1 - Weight (kg) 0.2662kg
Packaging 1 - Width (m) 0.16m
Packaging 2 - Height (m) 0.168m
Packaging 2 - Length (m) 0.168m
Packaging 2 - Qty 110
Packaging 2 - Type carton
Packaging 2 - Volume (m³) 0.0031
Packaging 2 - Weight (kg) 1.434kg
Packaging 2 - Width (m) 0.11m
Reel Length 22.0m
