EdgeGuard
Art.-Nr. 251-06002 | TE-024-PA6-NA |  Details

    • Very flexible
    • Easy to apply
    • Protects cables from chafing on bulkheads
    Add to watchlist

    Request your individual offer now

     Request quote

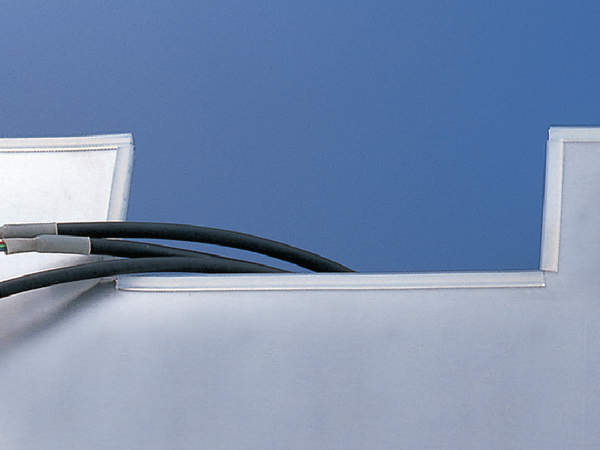

    Application EdgeGuard is used to cover panel edging to prevent chafing and provide an attractive finish.
    Colour Natural (NA)
    Material Polyamide 6 (PA6)
    PART DESCRIPTION TE-024-PA6-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family EdgeGuard
    Product Group Edge protection

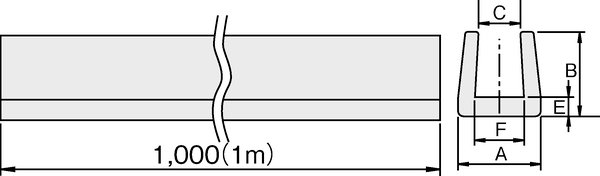

    Type TE-024
    Height (H) 5.3mm
    Length (L) 1m
    Wall (WT) 0.9mm
    Width (W) 4.4mm
    Width (W2) 1.2mm
    Width (W3) 2.4mm
    for Panel Thickness min - max 1.6 - 2.3 mm
    Flammability UL 94 HB
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387509304
    ETIM 7.0 Key EC001937
    ETIM 8.0 Key EC001937
    ETIM 9.0 Key EC001937
