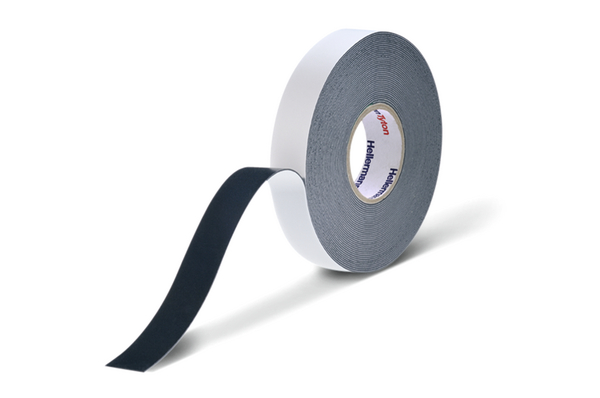

Self-amalgamating tape 19 mm x 9.1 m black
Art.-No. 711-10401
| HTAPE-POWER810-EPR-BK
|
세부
- Self-amalgamating tape for insulating and jacketing splices up to 69 kV
- Halogen-free with outstanding corona, ozone and UV-resistance
- Ideal for sealing of terminations, electrical connections and cable jacket repair
- Void-free, electrically stable layering
- Protects e.g. bus bars against corrosion and contact
- Excellent moisture, corrosion and chemical resistance
- Compatible with all extruded cable insulations
More products in this product group:
Application | HellermannTyton offers a wide range of products for bundling, insulating, sealing and labeling cables and wires. PVC insulation tapes for low-voltage applications are available in various colors and dimensions. Self-welding, rubber-based tapes are ideal for insulating and sealing cables and connections from low to high and extra-high voltage ranges. HelaTape Tex fabric tapes are versatile and easy to write on. |
Articolo | HTAPE-POWER810 |
Colore | Nero (BK) |
Cont. conf. | 9.1m |
Descrizione Breve | Nastro autoagglomerante 0,76 HTAPE-POWER810 |
GLOBAL PART DESCRIPTION | HTAPE-POWER810-EPR-BK |
Materiale | Gomma Etilenpropilenica (EPR) |
Prodotto: Categoria | Nastri autoagglomeranti - Nastro in gomma per alta tensione |
Prodotto: Famiglia | HelaTape Power 810 |
Quantità per | bobina |
Zero Alogeni | Sì |
org.mozilla.javascript.Undefined@0 | SI |
Certificazioni | |
Temp. di esercizio - °C | +90 °C |
org.mozilla.javascript.Undefined@0 | No |
Allungamento alla rottura | 750 % |
org.mozilla.javascript.Undefined@0 | Sì |
Assorbimento acqua | 0.06% |
Carico di rottura | 2.4N/mm² |
Resistitività dielettrica | 10¹⁶ Ω cm |
Temp. intermittente max. | +130°C |
org.mozilla.javascript.Undefined@0 | Sì |
Autoestinguente | Sì |
Conformità RoHS | Sì |
Durata a scaffale | 5 anni |
Rigidità dielettrica | 30kV/mm |
org.mozilla.javascript.Undefined@0 | Sì |
|
|
Codice EAN | 4031026548852 |
Codice doganale | 39191012 |
PL1_Dim. Altezza | 0.115m |
PL1_Dim. Larghezza | 0.02m |
PL1_Dim. Lunghezza | 0.115m |
PL1_Peso | 0.164kg |
PL1_Quantità | 1 |
PL1_Tipologia | pz |
PL1_Volume | 0.00026m³ |
PL3_Dim. Altezza | 0.17m |
PL3_Dim. Larghezza | 0.254m |
PL3_Dim. Lunghezza | 0.355m |
PL3_Peso | 7.395kg |
PL3_Quantità | 42 |
PL3_Tipologia | cartone |
PL3_Volume | 0.0153m³ |
PL4_Dim. Altezza | 1.165m |
PL4_Dim. Larghezza | 0.8m |
PL4_Dim. Lunghezza | 1.2m |
PL4_Peso | 420.326kg |
PL4_Quantità | 2268 |
PL4_Tipologia | pallet |
PL4_Volume | 1.118m³ |
Paese d'origine | CN |
