Gel, Silicone (SI) transparent, 500ml
Art.-No. 435-00757
| Religel Clear 500-SI-CL
|
세부
- Optimal visual control through transparent material
- Crystal clear gel after curing, excellent insulating properties, suitable for LED applications
- Multiple use possible, mixing ratio 1:1
- Excellent flow and insulating properties
- Excellent moisture and chemical resistance
- Soft elastic, vibration absorbing and removable residue-free
More products in this product group:

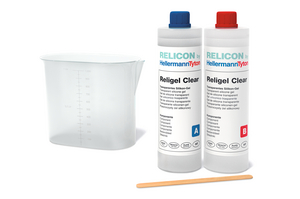

Application | RELICON Religel Clear is a transparent, soft elastic two-component silicone gel. It is packed in practical bottles or canisters including measuring cup and mixing stick. Encapsulation of printed circuit boards, Installation of electrical connections, Belowground or submerged, Model-making and hobby applications |
Articolo | Religel Clear 500 |
Caratteristiche principali del prodotto | assorbimento delle vibrazioni |
Colore | Trasparente (CL) |
Cont. conf. | 500ml |
Densità | 0.97 g/cm³, 20 °C (DIN EN ISO 2811-2) |
Descrizione Breve | Gel bicomponente trasparente 500ml |
GLOBAL PART DESCRIPTION | Religel Clear 500-SI-CL |
Materiale | Silicone (SI) |
Prodotto: Categoria | RELICON Religel Clear |
Prodotto: Famiglia | Religel Clear |
Quantità per | bottiglia |
Tempo lavorabilità | 10 min. 23°C |
Utensile | PTS4, ASS103, RCS0425 |
Viscosità | 1000 mPa*s, 23 °C (EN ISO 2555) |
Zero Alogeni | Sì |
org.mozilla.javascript.Undefined@0 | SI |
org.mozilla.javascript.Undefined@0 | 0.15W/mK |
Temp. di esercizio - °C | da -60 °C a +200 °C |
org.mozilla.javascript.Undefined@0 | No |
Assorbimento vibrazioni | Sì |
Conformità RoHS | Sì |
Durata a scaffale | Illimitata |
Rigidità dielettrica | 25kV/mm |
org.mozilla.javascript.Undefined@0 | 0.15W/mK |
Codice EAN | 4031026603254 |
Codice doganale | 39100000 |
PL1_Dim. Altezza | 0.177m |
PL1_Dim. Lunghezza | 0.162m |
PL1_Peso | 0.706kg |
PL4_Dim. Altezza | 0.964m |
PL4_Peso | 196.945kg |
PL4_Quantità | 204 |
Temperatura stoccaggio | da +4 °C a +40 °C |
org.mozilla.javascript.Undefined@0 | 485g |
PL1_Dim. Larghezza | 0.098m |
PL1_Quantità | 1 |
Paese d'origine | IT |
