BSPSW1143B-PET-OG : BSPSW1143B
Art.-No. 170-03086
| BSPSW1143B-PET-OG
|
Details
- Split wrap design installs quickly, saving assembly time and future accessibility without disassembly
- Unique construction retains shape and rigidity throughout unrolling
- Easy open design allows quick assembly, future access, and ability to apply protective sleeving post assembly or post installation situations
Request your individual offer now
Request quote
| Colour | Orange (OG), High Voltage (HV) |

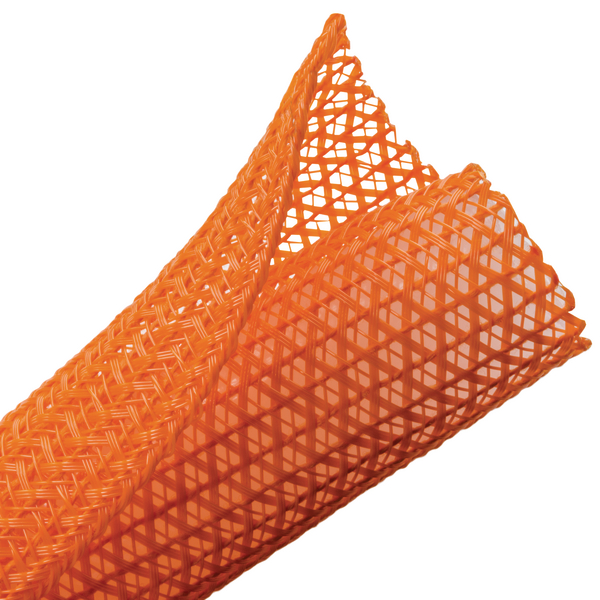

| Description | A lateral split, semi-rigid and flame retardant braided sleeving configuration used when ease of installation and repeat access to wire bundle is required. The lateral split allows the sleeving to open and accommodate a variety of bundling requirements. The 25% edge overlap rolls back over connectors and splices without exposing the bundled wires. |
| Material | Polyester (PET) |
| Open, post termination (Yes/No) | No |
| PART DESCRIPTION | BSPSW1143B-PET-OG |
| Pack Content | 22.86m |
| Package Content packed in | reel |
| Type | BSPSW1143B |
| Abrasion Resistance | Medium |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V0 |
| Halogen-free | Yes |
| Melting Point | +250 °C |
| Operating Temperature | -70 °C to +125 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
