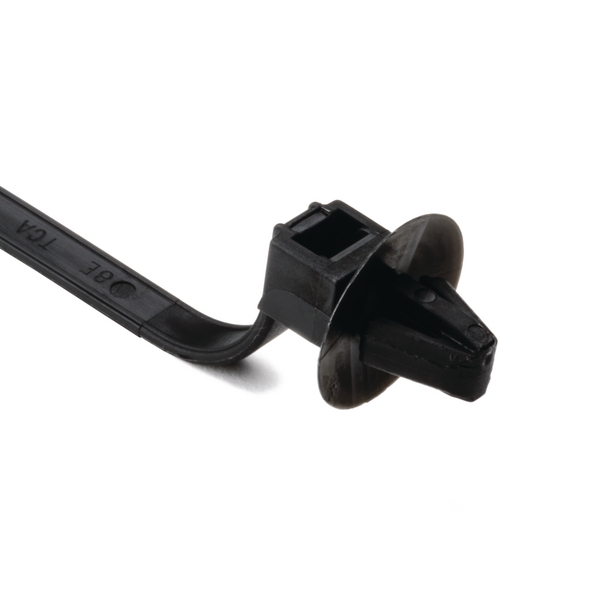

Fixing tie for hole (round), inside serrated, Ø10.0-59.0mm, black, 100pcs.
Art.-No. 111-85850
| T50MD7-PA66HS-BK
|
세부
- Easy to install without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts tie for pressures from various directions and minimises ingress of dust and dirt
- Cable tie head always situated in a defined position
- KSFT-types with specially rounded arrowhead minimise the assembly height
More products in this product group:
Application | With a diverse range of fixing possibilities these ties are ideal for use in many different industries, including automotive, aerospace, white goods manufacture and panel building. This fastening solution is used to secure cable harnesses. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. |
Articolo | T50MD7 |
Colore | Nero (BK) |
Cont. conf. | 100Pz. |
Descrizione Breve | Fascetta fissaggio a freccia T50MD7 |
GLOBAL PART DESCRIPTION | T50MD7-PA66HS-BK |
Metodo di fissaggio | Punta di freccia |
Quantità per | pz |
Serraggio riapribile? | No |
Variante | A dentatura interna |
org.mozilla.javascript.Undefined@0 | nessuno |
Materiale | Poliammide 6.6 stabilizzata al calore (PA66HS) |
Prodotto: Categoria | Fascetta di fissaggio 1-piece con ancoraggio a freccia e disco |
Prodotto: Famiglia | per fori tondi |
Tipo di serraggio | dente in plastica |
Utensile | ProCut 9 no battery, EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO7, EVO7SP, EVO7iSP, EVO9, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT |
Carico rottura min | 225N |
Largh. (W) | 5.0mm |
Spessore (T) | 1.5mm |
Spessore pannello (metrico) | 1.2 - 2 mm |
∅ legat. max | 59.0mm |
org.mozilla.javascript.Undefined@0 | 0 - 0.1 " |
Diametro legatura (mm) | 10.0-59.0mm |
Lungh. (L) | 225.0mm |
Peso Netto | 0.002051kg |
Spessore pannello | 1.2 - 2.0mm |
∅ disco | 16.0mm |
∅ foro fiss. (FH) | 6.8 - 7.2 mm |
∅ legat. min | 10.0mm |
org.mozilla.javascript.Undefined@0 | SI |
Certificazioni | |
Temp. di esercizio - °C | da -40 °C a +105 °C |
UL Listed (US) | No |
org.mozilla.javascript.Undefined@0 | No |
Certificato CSA | No |
Certificazione CE | No |
org.mozilla.javascript.Undefined@0 | No |
Conformità RoHS | Sì |
Infiammabilità | UL 94 V2 |
UL Listed | No |
UL Riconosciuto | No |
UL Riconosciuto (US) | No |
|
|
Codice EAN | 5022660322853 |
Codice doganale | 39269097 |
PL1_Dim. Altezza | 0.06m |
PL1_Dim. Larghezza | 0.2m |
PL1_Dim. Lunghezza | 0.285m |
PL1_Peso | 0.205101kg |
PL1_Quantità | 100 |
PL1_Tipologia | confezione |
PL1_Volume | 0.00342m³ |
PL3_Dim. Altezza | 0.218m |
PL3_Dim. Larghezza | 0.4m |
PL3_Dim. Lunghezza | 0.599m |
PL3_Peso | 4.85202kg |
PL3_Quantità | 2000 |
PL3_Tipologia | scatola |
PL3_Volume | 0.0522m³ |
PL4_Dim. Altezza | 1.234m |
PL4_Dim. Larghezza | 0.8m |
PL4_Dim. Lunghezza | 1.2m |
PL4_Peso | 118.04kg |
PL4_Quantità | 40000 |
PL4_Tipologia | pallet |
PL4_Volume | 1.185m³ |
Paese d'origine | SG |
