Cable tie mount for screw fixation, Ø8.0 mm, M8 Screw, black, 500pcs.
Art.-No. 151-02092 | S3SBM8-PA66HIRHS-BK |  Details

    • For parallel routing of bundles
    • Secure alignment to the bundle due to H-design
    • Easy maintenance of bundle by simply changing cable tie
    • Cable tie head can be moved after bundling
    Add to watchlist
    Downloads
    Application These 3-way routing saddle mounts are designed to secure up to three bundles for multiple routing and reduce chaving or wear to those bundles. Applicable for various applications within the OEM, mass transit, defence or heavy truck and automotive markets.
    Colour Black (BK)
    Key product features vibration absorbing, for multiple routing
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Mounting Screw Type M8 Screw
    Pack Cont. 500pcs.
    Package Content packed in bag
    PART DESCRIPTION S3SBM8-PA66HIRHS-BK
    Product Family S3SBM8
    Product Group Heavy duty mounts for 3-way routing

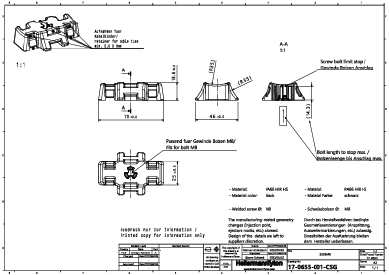

    for Hole ∅ (FH) 8.0 mm
    Height (H) 18.0mm
    Length (L) 70.0mm
    Strap Width max. (G) 9.0mm
    Weight/Unit 0.01805kg
    Width (W) 46mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026599991
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 9.675kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 10000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 214.5kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
