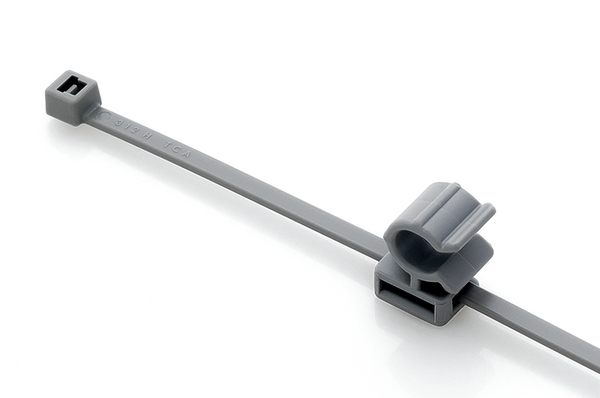

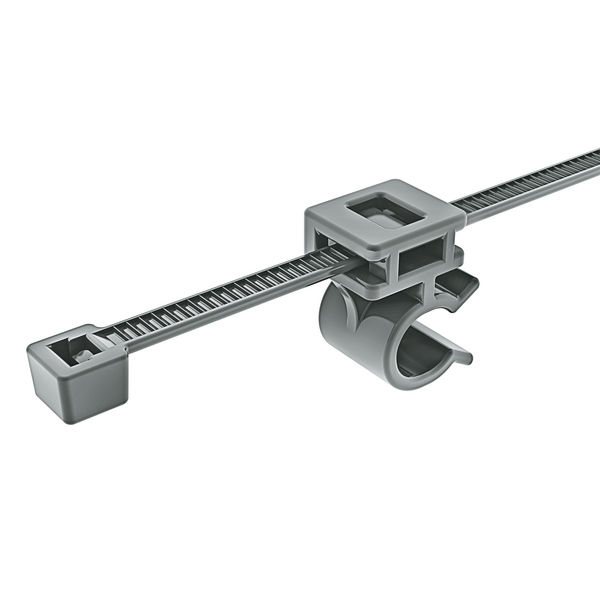

Fixing tie for cable bundles/with pipe/tube holder, Ø4.0-30.0mm, grey, 500pcs.
Art.-No. 156-01608 | T30ROC2A-PA46-GY |  Details

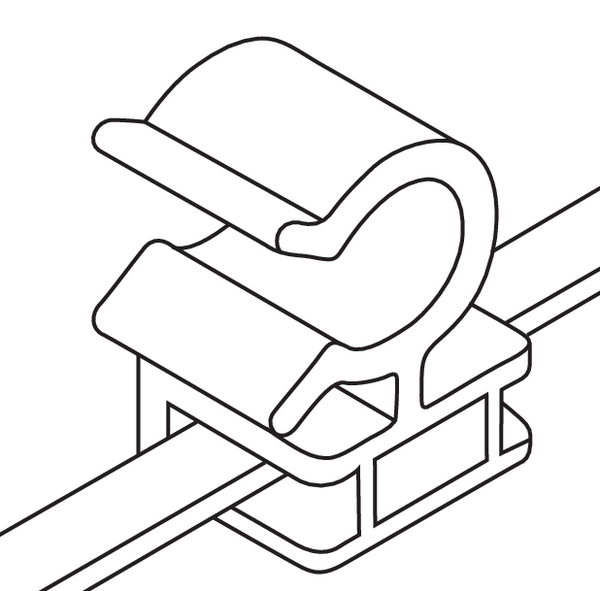

Pipe Clip T30ROC2A for post-installation of additional cables for preassembled cable looms.

    • For post-installation of additional cables for preassembled cable looms
    • Variety of twist angles and even different loop directions provide flexibility for cable routing
    • For OC1 and 2A additional cable tie dimensions are available
    • CBTO-series for cable ties up to 5 mm
    Add to watchlist
    Downloads
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP
    Colour Grey (GY)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features for multiple routing, removable
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION T30ROC2A-PA46-GY
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family T30ROC2A for Pipediameter 6,5 - 7,5 mm
    Product Group 2-piece fixing ties with pipe clip
    Type T30ROC2A
    Attach to Ø 6.5 - 7.5
    Bundle Diameter max (metric) 30.0mm
    Bundle ∅ 4.0-30.0mm
    Bundle ∅ min. 4.0mm

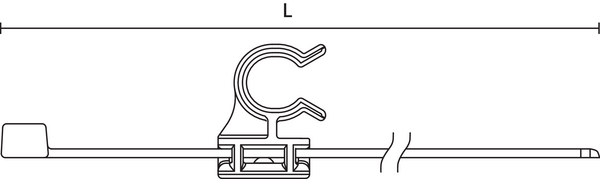

    Length (L) 150mm
    Min.Tensile Strength 135N
    Width (W) 3.6mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026559490
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
