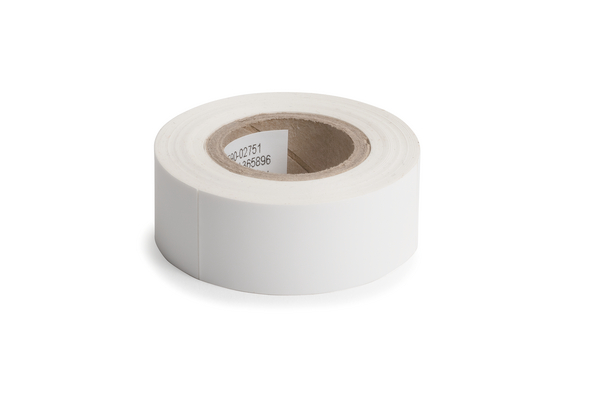

FL275REF-PP-WH : FL275REF
Art.-No. 590-02751 | FL275REF-PP-WH |  Details

    Add to watchlist
    Downloads Datasheet
    Application RiteOn Starter Pack The ideal way of starting to use HellermannTyton’s excellent hand held labelling products. Refill Packs Refill packs are available with label areas in 6 different colours that will suit most applications. Refilling is simplicity itself into the RiteOn dispenser. Marking Pen Permanent marker pen for reliable labelling. The indelible ink will not wash off and dries very quickly. Available in pairs in either black or red.
    Colour White (WH)
    Fixation Method adhesive
    Material Polypropylene (PP)
    Pack Cont. 125
    Package Content packed in roll
    PART DESCRIPTION FL275REF-PP-WH
    Self adhesive (Yes/No) Yes
    Variant Roller form
    With label space Yes
    Bundle Diameter max (metric) 9.52mm
    Bundle ∅ 1.52-9.52mm
    Bundle ∅ min. 1.52mm
    For AWG 14 to 1
    Height (H) 50.8mm
    Min. Wire Size (in²) 0.06"
    Outside ∅ max (OD max.) 9.52mm
    Outside ∅ max. 0.375"
    Outside ∅ min. 0.10"
    Outside ∅ min. (OD min.) 2.54mm
    Width (W) 19.05mm
    Adhesive Acrylic
    Adhesive Operating Temperature -46°C to +94°C
    CE Certification No
    CSA Certified No
    Halogen-free No
    Operating Temperature -46°C to +94°C
    Shelf Life 24 months
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin US
    GTIN-13 / EAN 4031026713670
    ETIM 7.0 Key EC001530
    ETIM 8.0 Key EC001530
    ETIM 9.0 Key EC001530
    UNSPSC Key 39131509
