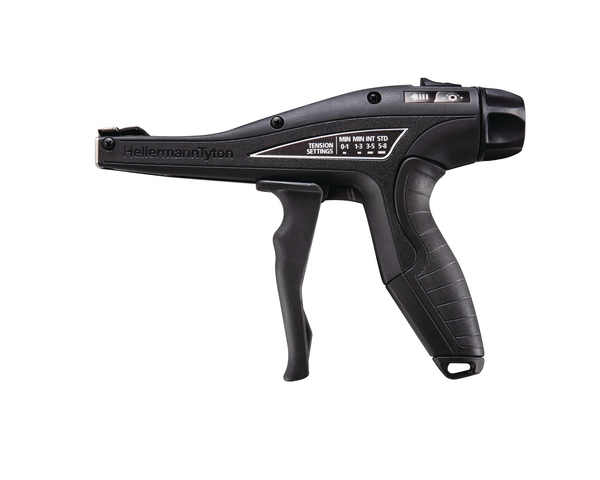

Cable tie tool for 2.5-4.8mm, manual, 0.275kg, black
Art.-Nr. 110-70129 | EVO7-MET/PL-BK |

Copied
The EVO7: Maximum performance with minimum effort.
EVO7 Tension/Lock/Cut Technology delivers performance, safety and comfort for operators.
EVO7 Tension/Lock/Cut Technology delivers performance, safety and comfort for operators.

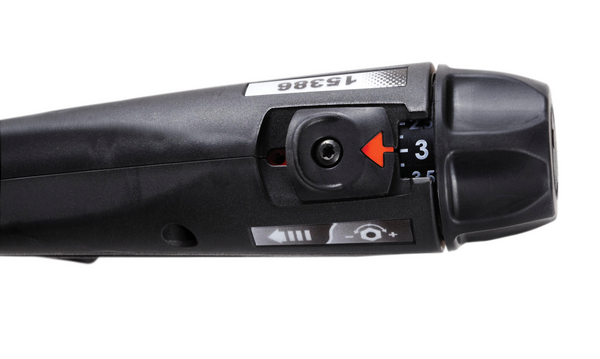

1. Tension: The cable tie is tensioned as usual. Use the tension adjustment knob to select your desired tension setting.
1. Tension: Tie is tensioned as usual. 2. Lock: When the desired tension is met the locking mechanism locks the tie in place.
3. Cut: Innovative, effortless and less recoil shock cut-off function.
EVO7 is a lightweight tool with the most technologically advanced ergonomic design for reducing work-related risks such as fatigue and injury that effect productivity.

    This product is not available anymore.

    Alternative product available

    • Ergonomic, slip-proof handle for a comfortable and secure grip
    • Extremely low maintenance
    • Fast and precise application with minimum effort (TLC mechanism)
    • Convenient and simple tension adjustment
    • Extended, slim nose for use in narrow spaces
    • Housing made of resilient and lightweight glass fibre-reinforced polyester
    • Standard grip span (90 mm) and short grip span (80 mm) available
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application HellermannTyton's EVO7 mechanical hand tool was ergonomically designed to reduce the risks of repetitive stress injuries to operators while concurrently increasing productivity. The EVO7 Tension/Lock/Cut Technology delivers performance, safety and comfort for the operators. Available in a standard grip span (EVO7) or short grip span (EVO7SP), for smaller hands. Additional accessories are available.
    Colour Black (BK)
    Description EVO7
    For Cable Tie Width 2.5-4.8mm
    Material Metal (MET), Plastic (PL)
    Operation manual
    PART DESCRIPTION EVO7-MET/PL-BK
    Package Content 1pc.
    Product Family EVO7 up to 4.8 mm strap width
    Product Group Manual tensioning tool plastic housing
    Short Description Manual Tensioning Tool up to 4.8 mm strap width
    Strap Thickness max. 1.5mm
    Tool property Manual clipping
    Tool suitable cable tie material Plastic
    Type EVO7
    Weight/Unit 0.275kg
    Strap Width max. 4.8mm
    Strap Width max. (G) 0.19"
    Tension Setting Adjustable
    CE Certification No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Nato number 5120-12-409-3857, 5120-00-781-7891
    ROHS compliant Yes
    Specifications
    Specifications SAE - AS90387
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    US Gov. Designation MS90387-1, SAE-AS90387
    Country of Origin US
    Customs Number 82055980
    GTIN-13 / EAN 4031026454092
    Packaging 1 - Height (m) 0.055m
    Packaging 1 - Length (m) 0.235m
    Packaging 1 - Qty 1
    Packaging 1 - Type carton
    Packaging 1 - Volume (m³) 0.002391125m³
    Packaging 1 - Weight (kg) 0.775kg
    Packaging 1 - Width (m) 0.185m
    Packaging 4 - Type pcs.
    ETIM 7.0 Key EC000453
    ETIM 8.0 Key EC000453
    ETIM 9.0 Key EC000453
    UNSPSC Key 39121703
    Cable tie guns Cable tie guns

    Cable tie guns

    From manual and pneumatic cable tie guns to automatic cable tie guns, Hellermanntyton offers a wide range of cable tie tensioning tools for a variety of requirements. Always reliable and comfortable and ideal for long-term use.
