Cable tie tool for 2.5-4.8mm, manual, 0.28kg, black
Art.-Nr. 110-70084 | EVO7SP-MET/PL-BK |

Copied

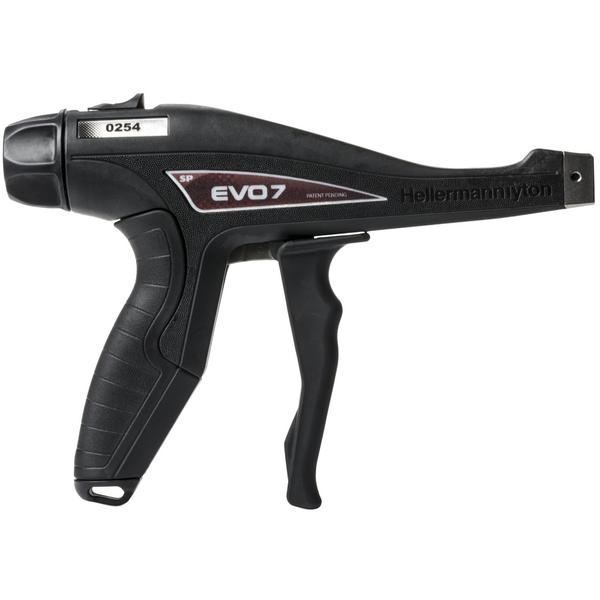

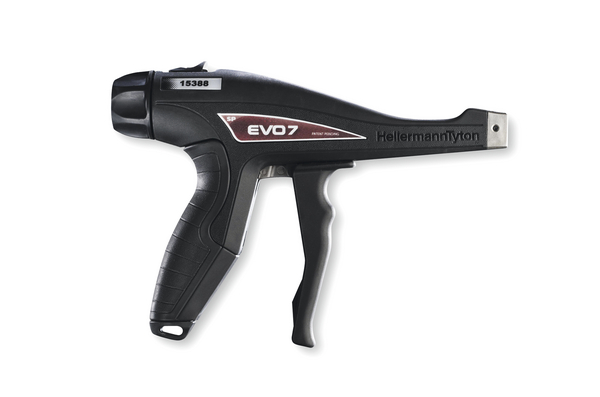

EVO7SP has a shorter grip for smaller hands.

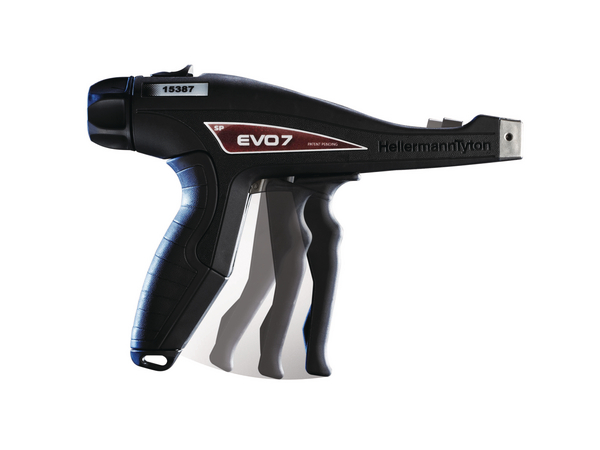

The EVO7: Maximum performance with minimum effort.
The EVO7: Maximum performance with minimum effort.

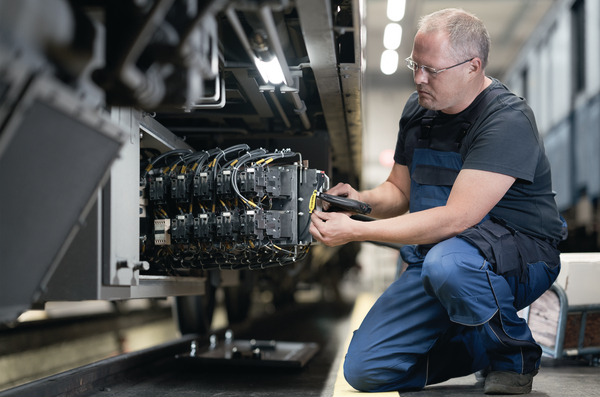

Railway-specific products offer best solutions.
EVO7SP has a shorter grip for smaller hands.

    This product is not available anymore.

    Alternative product available

    • Ergonomic, slip-proof handle for a comfortable and secure grip
    • Extremely low-maintenance
    • Fast and precise application with minimum effort (TLC mechanism)

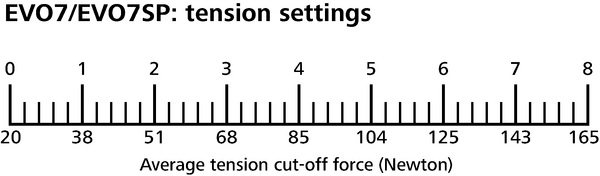

    • Convenient and simple tension adjustment
    • Extended, slim nose for use in narrow spaces
    • Housing made of resilient and lightweight glass fibre-reinforced polyester
    • Standard grip span (90 mm) and short grip span (80 mm) available
    Add to watchlist

    Request your individual offer now

     Request quote

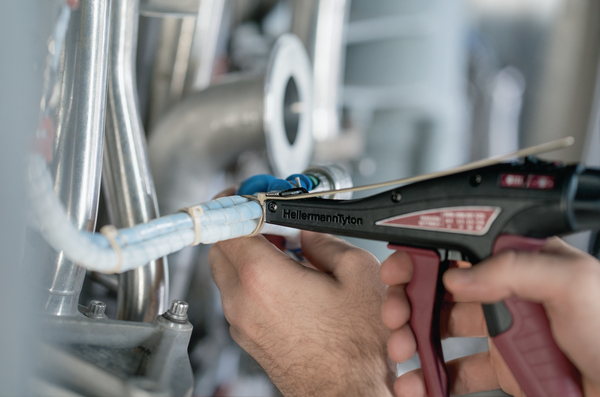

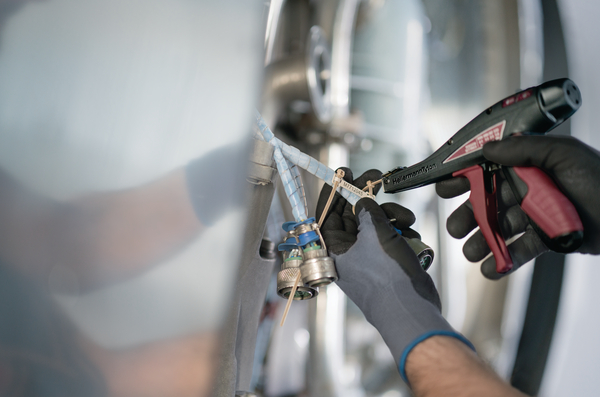

    Application EVO 7 delivers precise tensioning and cut-off of HellermannTyton cable ties while reducing work related risks to quality, productivity and employee safety. For use in OEM applications (ie; Truck and Heavy Equipment, White Goods, Automotive), wire harness assembly and control panel building.
    Colour Black (BK)
    Description HellermannTyton's EVO7 mechanical hand tool was ergonomically designed to reduce the risks of repetitive stress injuries to operators while concurrently increasing productivity. The EVO 7 Tension/Lock/Cut Technology delivers performance, safety and comfort for the operators. Available in a standard grip span (EVO 7) or short grip span (EVO 7SP), for smaller hands. Additional accessories are available.
    For Cable Tie Width 0.10-0.19"
    For Cable Tie Width 2.5-4.8mm
    For Ties T18, T30, T40, T50, T80, IT18, IT50
    Material Metal (MET), Plastic (PL)
    Operation manual
    PART DESCRIPTION EVO7SP-MET/PL-BK
    Package Content 1pc.
    Package Content packed in pack
    Product Family EVO7
    Product Group Manual Processing Tools
    Short Description Manual Tensioning Tool for Plastic Ties up to 4.8 mm strap width
    Tool property Manual clipping
    Tool suitable cable tie material Plastic
    Type EVO7SP
    UV-Stabilised No
    Weight/Unit 0.28kg
    Strap Width max. 4.8mm
    Strap Width max. (G) 0.19"
    Tension Setting Adjustable
    CE Certification No
    CSA Certified No
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    GTIN-13 / EAN 4031026438542
    Packaging 1 - Qty 1
    Packaging 1 - Type pack
    Packaging 1 - Weight (kg) 0.276kg
    Packaging 3 - Weight (kg) 12.2kg
    ETIM 7.0 Key EC000453
    ETIM 8.0 Key EC000453
    ETIM 9.0 Key EC000453
    UNSPSC Key 27112410
    Cable tie guns Cable tie guns

    Cable tie guns

    From manual and pneumatic cable tie guns to automatic cable tie guns, Hellermanntyton offers a wide range of cable tie tensioning tools for a variety of requirements. Always reliable and comfortable and ideal for long-term use.
