07/12/2024

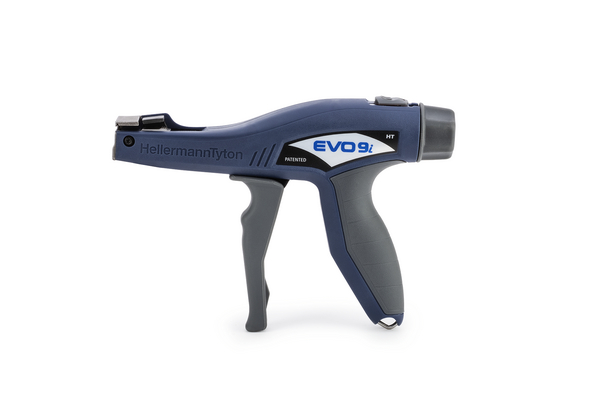

Cable tie tool for 4.6 - 13.5mm, manual, 0.373kg, blue
Art.-Nr. 110-88003 | EVO9iHT-MET/PL-BU Details

  • Cuts ties from 50 to 250 lb with a clean, flush cut for personnel safety and wire insulation integrity.
  • Quality construction with impact-resistant housing, tested at over 1 million cycles, provides high durability resulting in fewer repairs and an extended product life.
  • Lightweight tool with the most technologically advanced ergonomic design for reducing work-related risks such as fatigue and injury that affect productivity.
  • Industrial EVOi provides calibrated tensioning with operational reliability in securing bundles.
  • Tension dial offers 33 precise, easy-to-read settings (with ¼" increments) that reduce subjectivity or the need for fine tuning.
  • Tension lock-in mechanism prevents operator from changing tension setting during critical applications.
Show more

Request your individual offer now

Application HellermannTyton's EVO 9i industrial-grade, mechanical hand tool is ergonomically designed to reduce the risks of repetitive stress injuries to operators while simultaneously increasing productivity. The EVO 9i Tension/Lock/Cut Technology delivers performance, safety and comfort for operators. Calibrated tensioning assures consistent wire-bundle tension before flush cut-off. High-Tension configured for additional force. Additional accessories are available.
Colour Blue (BU)
Description EVO9iHT
For Cable Tie Width 0.18 - 0.53"
For Cable Tie Width 4.6 - 13.5mm
For Ties T50, T80, T120, T150, T250, T255, WS, LK2, LK3, LK5, GL, ECO Series
Material Metal (MET), Plastic (PL)
Operation manual
PART DESCRIPTION EVO9iHT-MET/PL-BU
Pack Cont. 1pc.
Package Content packed in box
Product Family EVO9iHT up to 13.5 mm strap width
Product Group Manual tensioning tool plastic housing
Strap Thickness max. 2.0mm
Tool property Manual clipping
Tool suitable cable tie material Plastic
Type EVO9iHT
Strap Width max. 13.5mm
Tension Setting Adjustable
Weight/Unit 0.373kg
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
Country of Origin CN
Customs Number 82055980
GTIN-13 / EAN 4031026621821
ETIM 7.0 Key EC000453
ETIM 8.0 Key EC000453
ETIM 9.0 Key EC000453
UNSPSC Key 27112410
