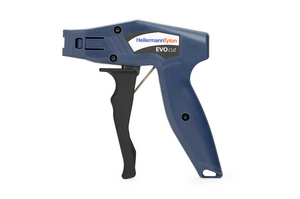

Cutting tool for plastic ties : EVOcut

EVO cutArticle number: 110-05005

Features

  • Cutting tool for plastic cable ties and fixing ties
  • Ensures the cable isolation from being damaged
  • Light-weighting plastic housing, ergonomic designed
  • Single-handed operation
  • Tie can be cut off at any part of the strap
  • Including three different nosepieces for respective cable tie width and thickness

Certifications & Approvals

Application

The EVO cut is a cutting tool for plastic ties, which ensures the cut of the strap while preserving wires and harnesses from being damaged in the process. The EVO cut works for both flexible and rigid bundles. Its use is recommended in many harness applications in which the safety and integrity of the wires is important.
The cutting tool is made of a lightweight plastic housing and an ergonomic, non-slip handle for a comfortable and secure grip.
The tool includes three different nosepieces, which are easy to change depending on cable tie width and thickness.

Colour Black (BK)
Description EVO cut
Operation manually
Pack Cont. 1pcs.
PART DESCRIPTION EVOcut-BK
Product Family EVO cut
Product Group Cutting tool for plastic ties
Short Description EVO cut
Strap Thickness max. 1.8mm
Tool property Manual clipping
Tool suitable cable tie material Plastic
Strap Width max. 7.8mm
Tension Setting Manual
CE Certification Yes
ELV compliant (Article 4 - 2) YES
Hazardous good No
Specifications
GTIN-13 / EAN 4031026642222
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.165m
Packaging 1 - Qty 1
Packaging 1 - Type carton
Packaging 1 - Volume (m³) 0.00067
Packaging 1 - Weight (kg) 0.17kg
Packaging 1 - Width (m) 0.135m
ETIM 6.0 EC000453
ETIM 7.0 Key EC000453
