25/06/2026

CABLE-SEAL-P280-068


Art.-Nr. 857-40595

| CABLE-SEAL-P280-068

 |

Copied

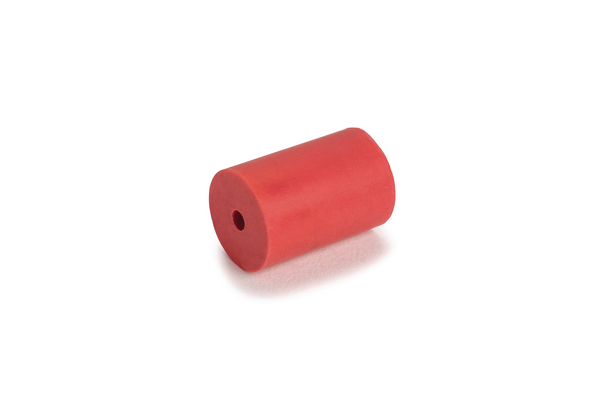

CCP Entry Seal

    • Solid grommet can be field split, allowing installation over pre-terminated cables
    • IP-68 compliant seal protects flat drop cable entry, preventing water damage
    • Grommet is color coded for easy size identification
    Add to watchlist
    Request quote
    Downloads
    Cable ⌀ max 3.0mm
    Cable ⌀ min 2.95mm
    Colour Red (RD)
    Description The CCP entry seals provide dust and water protection for the cable entering and exiting the CCP cable ports. The CCP is provided with a 2.95-3mm seal with a sealing pin to provide protection with or without a cable installed. This is a non-split replacement seal for the CCP to be used with 6mm diameter cable. Seal can be field split to install over pre-terminated cable ends and continue to meet IP-68 sealing requirements.
    PART DESCRIPTION CABLE-SEAL-P280-068
    Package Content 1
    Type CABLE-SEAL-P280-068
    Cable Size Max. (Imperial) 0.12 "
    Cable Size Max. (metric) 4.0 mm
    Cable Size Min. (Imperial) 0.12 "
    Cable Size Min. (metric) 3.0 mm
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660171215
    ETIM 7.0 Key EC000879
    ETIM 8.0 Key EC000879
    ETIM 9.0 Key EC000879
    UNSPSC Key 26121630
