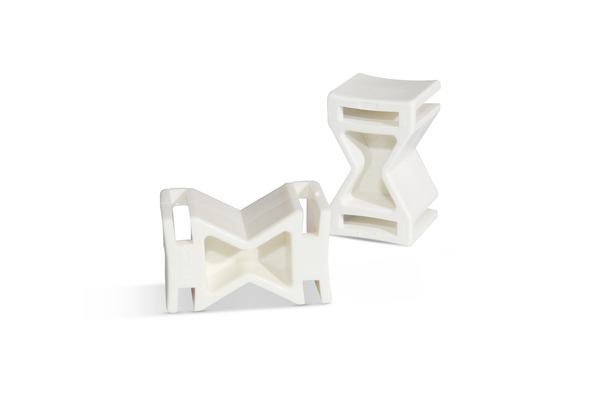

Cable tie mount, Wmax=12.5mm, white, 0.05ml
Art.-Nr. 151-01068 | CE30-PA46-WH

Copied
  • Used to distance and secure wires, cables, tubes, hoses
  • Used together with T120 and T250 series cable ties
  • Easy to install
  • No tool is needed

Request your individual offer now

Application The Spacer Shim is used to distance and secure cables, tubes, hoses and other products that require this purpose. It was specially developed to be used together with T120 and T250 series cable ties. With manual assembly, it does not require any type of special tool for its application.
Colour White (WH)
Material Polyamide 4.6 (PA46)
PART DESCRIPTION CE30-PA46-WH
Pack Cont. 0.05ml
Package Content packed in pack
Product Family CE Series
Product Group Spacer Shim
Type CE30
Bundle ⌀ 27mm
Bundle ⌀ max. 27mm
Height (H) 30mm
Length (L) 18mm
Strap Width max. (G) 12.5mm
Width (W) 18mm
Operating Temperature -40 °C to +150 °C
ROHS compliant Yes
Specifications
Country of Origin BR
GTIN-13 / EAN 7890176079466
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
