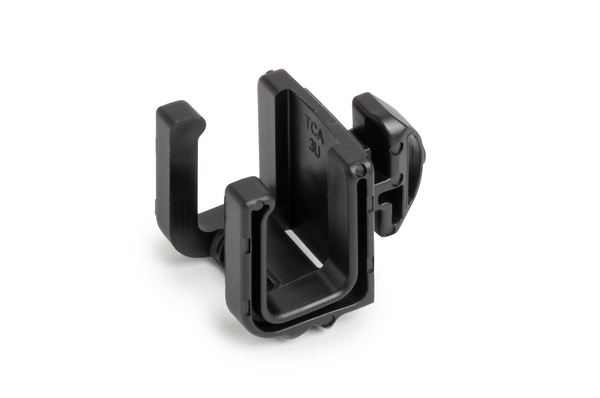

Aluminium frame mount, T=8.0mm, black, 100pcs.
Art.-Nr. 151-04303
| CTCM11CZF-PA66HIRHS-BK
|
Copied
- maximum ease of use
- No need to screw it in place
- Can be used with 20, 30 or 40 mm square frames from the major aluminum frame manufacturers
Request quote
More products in this product group:
| Application | Our aluminium frame mounts are specially designed for aluminium construction profiles. Theirs installation and handling is very simple. At every favoured place on the profile just with a quarter turn the mount is firmly fixed. Also it can be easily loosened and repositioned at any time. The mounts are custom developed for several aluminium construction profiles. |
| Colour | Black (BK) |
| Description | The cradle mount with frame attachment can be twisted into industrial frames with a 0.7 x 0.31" frame mount and is ideal for routing wires in industrial applications where rework and adjustments are common. Mount features a 0.43" cradle opening for cable retention. The cradle arms can temporarily hold wires for simple adjustments and cable additions and protect against abrasion and cable damage. To permanently mount the bundle, the EZ Feed™ cable tie slot eliminates common obstructions for faster completion. During rework, the CutZone™ prevents wire damage when cutting off cable ties. |
| Fixation Method | 80/20 Frame |
| For Ties | T18 - T120;GT.375 |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | CTCM11CZF-PA66HIRHS-BK |
| Package Content | 100pcs. |
| Package Content packed in | bag |
| Product Group | Fixing elements for aluminium frames |
| Short Description | Mounts which are special designed for aluminum construction profiles |
| Strap Thickness max. | 3.25mm |
| Strap Thickness max. | 0.13" |
| Type | CTCM11CZF |
| Typical Application | Our aluminium frame mounts are specially designed for aluminium construction profiles. Theirs installation and handling is very simple. At every favoured place on the profile just with a quarter turn the mount is firmly fixed. Also it can be easily loosened and repositioned at any time. The mounts are custom developed for several aluminium construction profiles. |
| UV-Stabilised | Yes |
| Weight/Unit | 0.003719457kg |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
