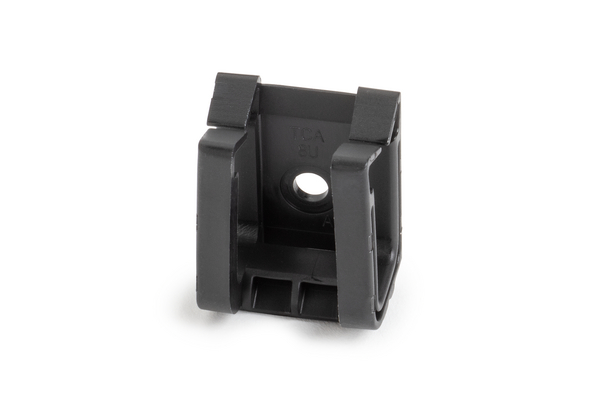

Cable tie mount for screw fixation, Wmax=13.0mm, ⌀4.5 mm, #8 (M4) Screw, black, 100pcs.
Art.-Nr. 151-04485 | CTCM11CZS_AE-PA66HIRHS(REC)-BK |

Copied

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Screw Mounting and Rivet
    For Ties T18 - T120
    Material Polyamide 6.6 recycled, high impact modified, heat stabilised (PA66HIRHS(REC))
    Mounting Screw Type #8 (M4) Screw
    PART DESCRIPTION CTCM11CZS_AE-PA66HIRHS(REC)-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Strap Thickness max. 0.13"
    Strap Thickness max. 3.25mm
    Type CTCM11CZS_AE
    Height (H) 19.0mm
    Height (H2) 11.0mm
    Length (L) 30.9mm
    Strap Width max. (G) 0.51"
    Strap Width max. (G) 13.0mm
    Width (W) 23.73mm
    for Hole ⌀ (FH) 4.5 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026766614
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
