02/11/2025

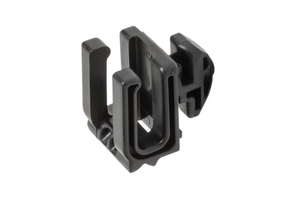

Aluminium frame mount, T=8.0mm, black, 100pcs.
Art.-Nr. 151-04302 | CTCM6CZF-PA66HIRHS(REC)-BK |

Copied

    • maximum ease of use
    • No need to screw it in place
    • Can be used with 20, 30 or 40 mm square frames from the major aluminum frame manufacturers
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Our aluminium frame mounts are specially designed for aluminium construction profiles. Theirs installation and handling is very simple. At every favoured place on the profile just with a quarter turn the mount is firmly fixed. Also it can be easily loosened and repositioned at any time. The mounts are custom developed for several aluminium construction profiles.
    Colour Black (BK)
    Fixation Method 80/20 Frame
    For Ties T18 - T120
    Material Polyamide 6.6 recycled, high impact modified, heat stabilised (PA66HIRHS(REC))
    PART DESCRIPTION CTCM6CZF-PA66HIRHS(REC)-BK
    Package Content 100pcs.
    Package Content packed in bag
    Product Group Fixing elements for aluminium frames
    Short Description Mounts which are special designed for aluminum construction profiles
    Strap Thickness max. 3.25mm
    Strap Thickness max. 0.13"
    Type CTCM6CZF
    UV-Stabilised No
    Weight/Unit 0.051800249kg
    Height (H) 14.0mm
    Height (H2) 6.0mm
    Length (L) 25.4mm
    Length (L2) 19.0mm
    Panel Thickness max. 8.0mm
    Strap Width max. (G) 0.36"
    Strap Width max. (G) 9.07mm
    Width (W) 19.3mm
    Width (W2) 8.0mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    GTIN-13 / EAN 4031026748757
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.6064m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Width (m) 0.3984625m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
