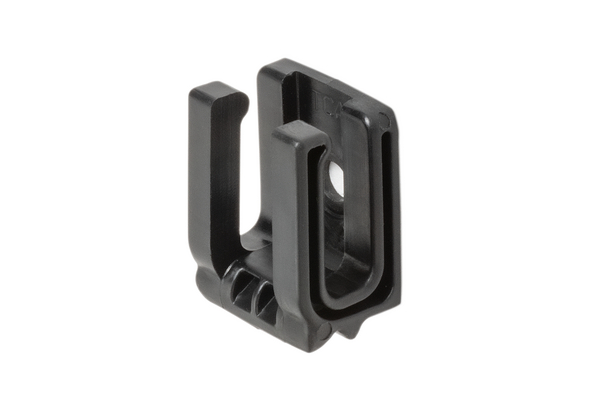

Cable tie mount for screw fixation, Wmax=9.07mm, ⌀4.5 mm, #8 (M4) Screw, black, 100pcs.
Art.-Nr. 151-04157
| CTCM6CZS-PA66STHS-BK
|
Copied
- Temporarily holds wires along routing path until ready to make permanent.
- Built-in CutZone™ safety feature prevents damage to wires and cables.
- Unique EZ Feed™ slot maintains clear space to insert cable ties.
- Allows flexibility of frame size and mounting location with #8 (M4) screw into panel surface or with T-nut in frame.
Request quote
| Colour | Black (BK) |
| Description | This cradle mount fastens to a panel with a screw or to a frame using a screw and T-nut. It is ideal for routing wires in industrial applications where rework and adjustments are common. Mount features a cradle opening for cable retention. The cradle arms can temporarily hold wires for simple adjustments and cable additions and protect against abrasion and cable damage. To permanently mount the bundle, the EZ Feed™ cable tie slot eliminates common obstructions for faster completion. During rework, the CutZone™ prevents wire damage when cutting off cable ties. |
| Fixation Method | Screw Mounting and T-Nut |
| For Ties | T18-T120 |
| Material | Polyamide 6.6, super tough, heat stabilized (PA66STHS) |
| Mounting Screw Type | #8 (M4) Screw |
| PART DESCRIPTION | CTCM6CZS-PA66STHS-BK |
| Package Content | 100pcs. |
| Package Content packed in | pack |
| Strap Thickness max. | 3.25mm |
| Strap Thickness max. | 0.13" |
| Type | CTCM6CZS |
| UV-Stabilised | No |
