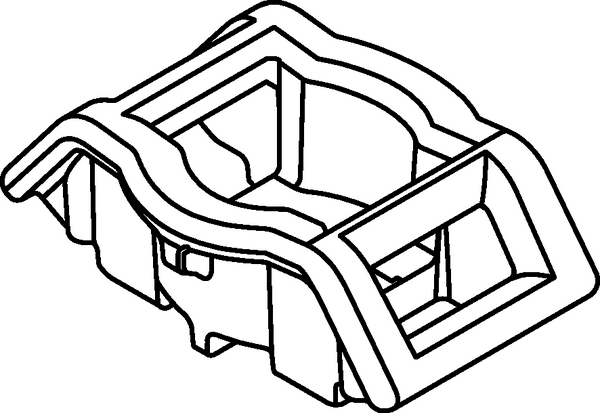

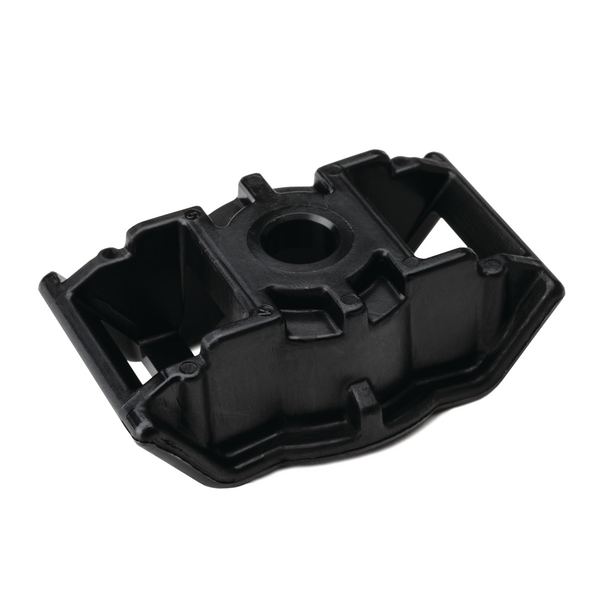

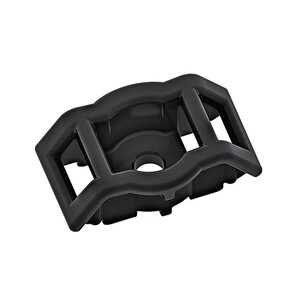

Cable tie mount for screw fixation, Wmax=13.5mm, ⌀6.7 mm, #1/4" (M6) Screw, black, 500pcs.
Art.-Nr. 151-01122
| LPM25-PA66HIRHSUV-BK
|
Copied
- Separates bundles to help prevent chafing and wear

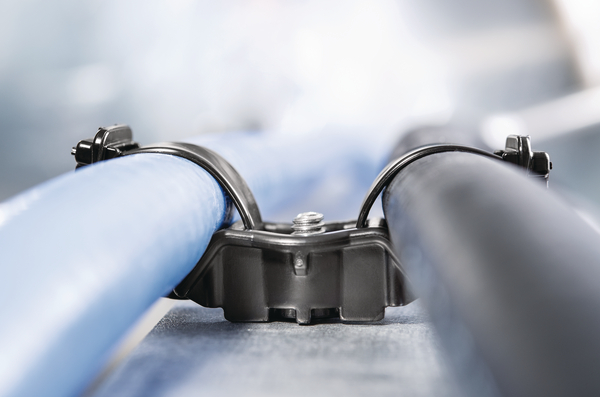

- Single bundles can be mounted on top of the mount, or two bundles can be separated using the two side saddles; giving the mount versatility
- Low profile design allows mount to be placed in areas where space is limited
Request quote
More products in this product group:
This product is part of:
| Application | Low Profile Mounts secure bundles close to mounting surfaces, making them ideal for applications where bundle mounting space is limited. These are secured with a .25" mechanical fastener, and have a counter bore for easy access with a socket which can be torqued up to 100 in/lbs. The mount accommodates cable ties up to .5" in width. |
| Colour | Black (BK) |
| Fixation Method | Screw Mounting and Rivet |
| For Ties | T50 - T250 |
| Key product features | vibration absorbing |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Mounting Screw Type | #1/4" (M6) Screw |
| PART DESCRIPTION | LPM25-PA66HIRHSUV-BK |
| Package Content | 500pcs. |
| Package Content packed in | pack |
| Product Family | for parallel separation |
| Product Group | Two way mount for heavy duty applications |
| Type | LPM25 |
| Typical Application | Low Profile Mounts secure bundles close to mounting surfaces, making them ideal for applications where bundle mounting space is limited. These are secured with a .25" mechanical fastener, and have a counter bore for easy access with a socket which can be torqued up to 100 in/lbs. The mount accommodates cable ties up to .5" in width. |
| UV-Stabilised | Yes |
| Weight/Unit | 0.01kg |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Max. Torque (Nm) | 11.3Nm |
| Max. Torque (lbf-In) | 8.3lbf-ft |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026457796 |
| Packaging 1 - Type | bag |
| Packaging 3 - Height (m) | 0.1397m |
| Packaging 3 - Length (m) | 0.51276m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0223m³ |
| Packaging 3 - Weight (kg) | 5.52kg |
| Packaging 3 - Width (m) | 0.31115m |
| Packaging 4 - Height (m) | 1.145m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 14000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.099m³ |
| Packaging 4 - Weight (kg) | 176.56kg |
| Packaging 4 - Width (m) | 0.8m |
