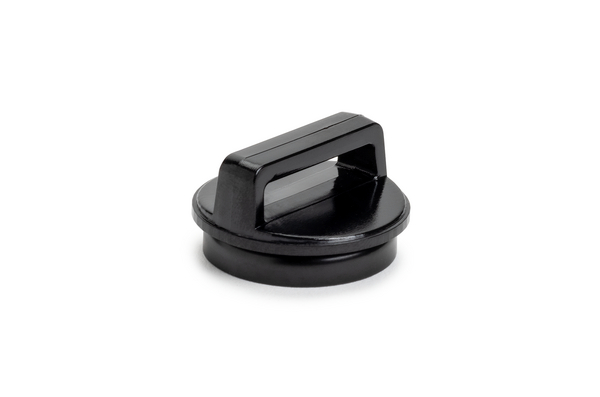

Cable tie mount for magnetic use, Wmax=19.1mm, black, 10pcs.


Art.-Nr. 151-04017

| MAGCTM15H-NDFEB39M/POM/ST-BK

 |

Copied
6803397

    Package size
    Add to watchlist
    Request quote
    Downloads e-Learning
    Colour Black (BK)
    Fixation Method Magnet
    For Ties Grip Tie
    Magnetic pull strength (N) 66N
    Magnetic pull strength (kgf) 6.73
    Magnetic pull strength (lb/ft) 15lbf-ft
    Material Neodymium alloy 39M (NDFEB39M), Polyacetal (POM), Steel (ST)
    PART DESCRIPTION MAGCTM15H-NDFEB39M/POM/ST-BK
    Package Content 10pcs.
    Package Content packed in pack
    Rotation (°) 360°
    Type MAGCTM15H
    ⌀ D 1.02"
    Diameter (D) 26mm
    Height (H) 14.4mm
    Strap Width max. (G) 0.75"
    Strap Width max. (G) 19.1mm
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    Operating Temperature -40 °C to +80 °C
    Plenum Rating AH-2
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UL-File Number E64139
    Country of Origin US
    GTIN-13 / EAN 4031026730172
    Packaging 1 - Qty 10
    Packaging 1 - Type pack
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121703

    Solutions

    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
