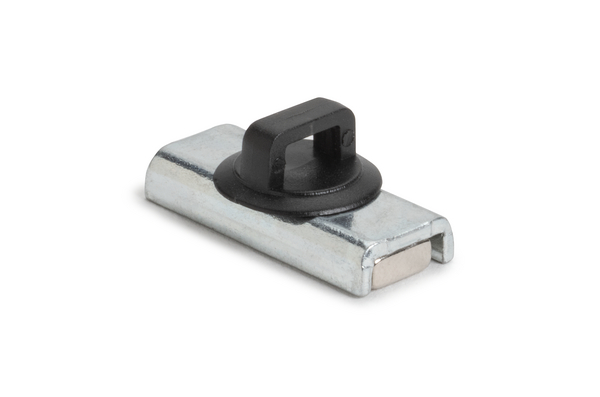

Cable tie mount for magnetic use, Wmax=5.84mm, black, 100pcs.
Art.-Nr. 151-03650 | MAGCTM20P-NDFEB45M/POM/ST-BK |

Copied

    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Magnet
    For Ties T18
    Magnetic pull strength (N) 66N
    Magnetic pull strength (kgf) 6.73
    Magnetic pull strength (lb/ft) 15lbf-ft
    Material Neodymium alloy 45M (NDFEB45M), Polyacetal (POM), Steel (ST)
    PART DESCRIPTION MAGCTM20P-NDFEB45M/POM/ST-BK
    Package Content 100pcs.
    Package Content packed in pack
    Rotation (°) 360°
    Type MAGCTM20P
    UV-Stabilised No
    ⌀ D 0.55"
    Diameter (D) 14.0mm

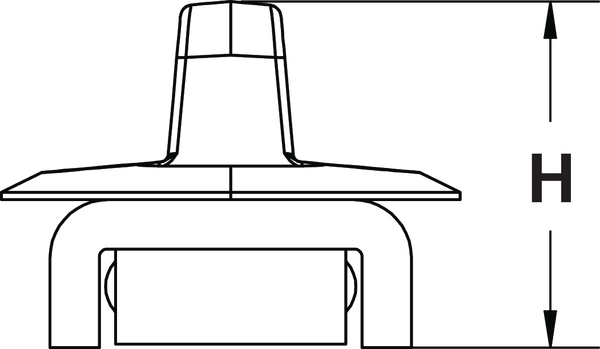

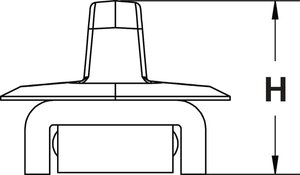

    Height (H) 10.5mm

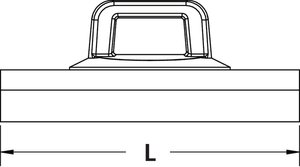

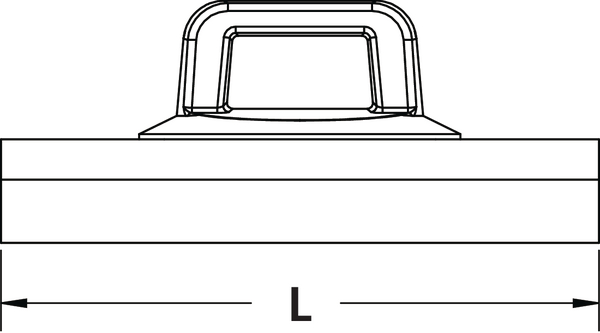

    Length (L) 26.0mm
    Strap Width max. (G) 0.23"
    Strap Width max. (G) 5.84mm
    Width (W) 7.0mm
    CE Certification No
    CSA Certified Yes
    Halogen-free Yes
    Operating Temperature -40 °C to +80 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin CN
    GTIN-13 / EAN 4031026754567
    Packaging 1 - Type bag
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121703
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
