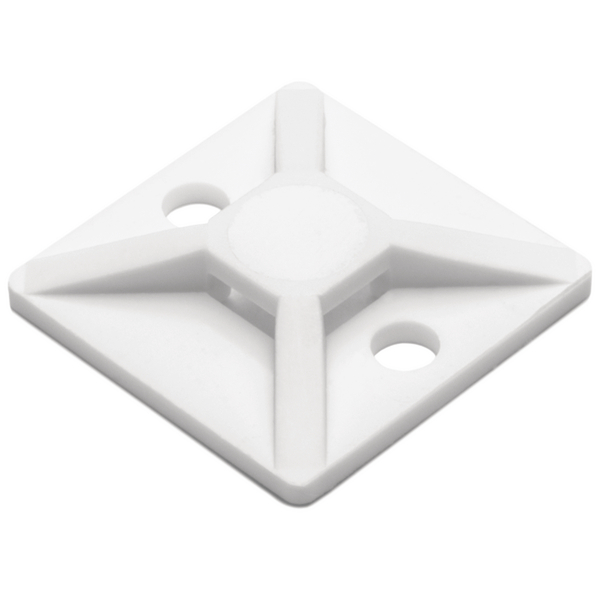

Cable tie mount for screw fixation, Wmax=3.6mm, ⌀3.0 mm, #4 Screw, white, 1000pcs.
Art.-Nr. 151-28305 | MB3-PA66-WH |

Copied
4-way cable tie entry for more installation options.
MB-Series Mounts with square design.
Cable Tie Mounts MB and TY.
4-way cable tie entry for more installation options.
MB-Series Mounts with square design.
MB3-MB5 (side view)
Cable Tie Mounts MB3, MB4, MB5 (plan view)
MB3-MB5 (plan view)

    • Screwable or self-adhesive versions
    • Simple to install with a screw or bolt
    • Excellent security, particularly in areas of high vibration
    • Maximum surface area with adhesive to achieve high pull-off force
    • 4-way entry for cable tie for quicker and more flexible installation
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from Agriculture to Truck manufacture, they offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 8mm wide.
    Colour White (WH)
    Fixation Method Screw Mount
    For Ties T18 - T30
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type #4 Screw
    PART DESCRIPTION MB3-PA66-WH
    Package Content 1000pcs.
    Package Content packed in pack
    Product Family MB-Series square design, screwable
    Product Group Screw fixing cable tie mounts
    Type MB3
    UV-Stabilised No
    Fixing Hole Centres (F) 0.52"
    Fixing Hole Centres (F) 13.2mm
    Height (H) 3.80mm
    Length (L) 19.0mm
    Strap Width max. (G) 0.14"
    Strap Width max. (G) 3.6mm
    Width (W) 19.0mm
    for Hole ⌀ (FH) 3.0 mm
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Specifications UL
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US) Yes
    UL-File Number E64139
    Country of Origin US
    GTIN-13 / EAN 4031026726625
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.5175m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
