MCXRCP5.2-PA66MDXRAYD-BU


Art.-Nr. 151-04789

| MCXRCP5.2-PA66MDXRAYD-BU

 |

Copied
30252295
30252296

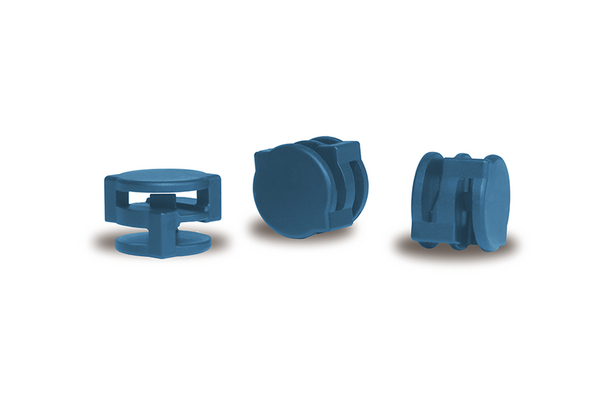

    • Its compact design features protrusions at each corner that serve as support pillars, ensuring structural strength.
    • These protrusions make it easy to hold during use and prevent it from rolling on flat surfaces.

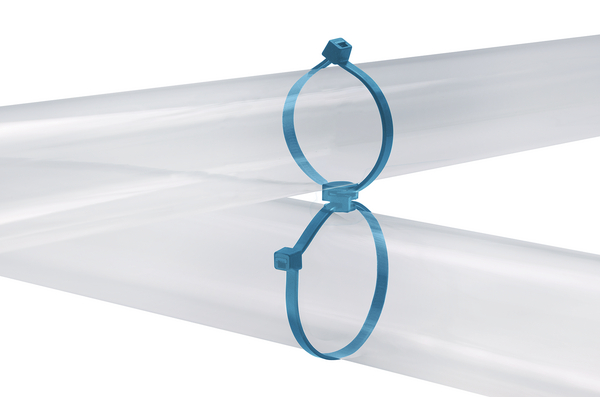

    • After fastening, it can rotate up to approximately 90° in both the vertical and horizontal directions, allowing for a total rotation of approximately 180°.
    Add to watchlist
    Request quote
    Downloads e-Learning
    Colour Blue (BU)
    Material Polyamide 6.6, metal detectable, X-ray detectable (PA66MDXRAYD)
    PART DESCRIPTION MCXRCP5.2-PA66MDXRAYD-BU
    Package Content 100pcs.
    Package Content packed in bag
    Type MCXRCP5.2
    Height (H) 8.6mm
    Length (L) 11mm
    Strap Width max. (G) 4.8mm
    Width (W) 11mm
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387130515
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717

    Solutions

    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
