30/06/2025

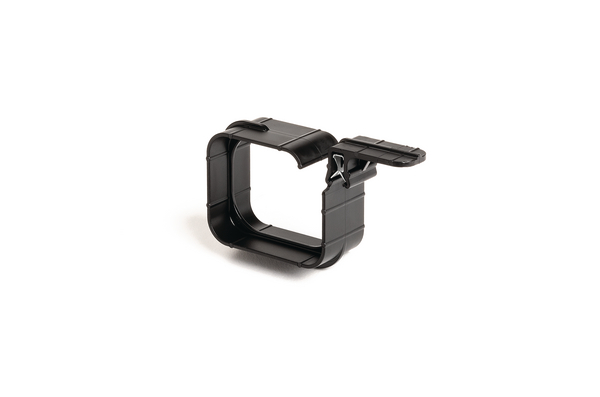

Cable tie mount for edge, T=1.0 - 3.0mm, black, 500pcs.
Art.-Nr. 151-01207 | RCEC-PA66HIRHSUV-BK |

Copied

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Edge Clip
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION RCEC-PA66HIRHSUV-BK
    Pack Cont. 500pcs.
    Package Content packed in pack
    Type RCEC
    Bundle ⌀ 31.0mm
    Bundle ⌀ max. 31.0mm
    Height (H) 43.0mm
    Height (H2) 31.0mm
    Length (L) 72.2mm
    Panel Thickness max. 1.0 - 3.0mm
    UV-Stabilised Yes
    Width (W) 20.0mm
    Width (W2) 14.0mm
    for Panel Thickness min - max 1 - 3 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026718170
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.5175m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Weight (kg) 4.04kg
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121702
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
