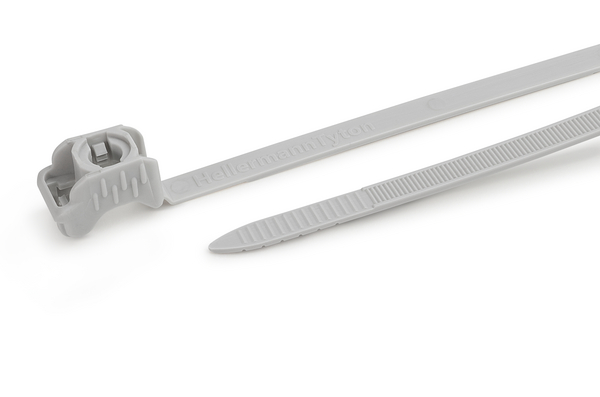

Cable tie inside serrated, 175.5x7.5mm, ⌀16-35mm, grey, 100pcs.
Art.-Nr. 111-07000
| FNT1635-PA66HIRUV-GY
|
Copied
- Quick and easy installation
- Suitable for holding electrical conduits from 16 to 35 mm diameter
- FNT1635 tie is compatible with the fir tree FNTLOK01 or 5.5 MM counterscrew
- A snap fit system followed by a quarter turn

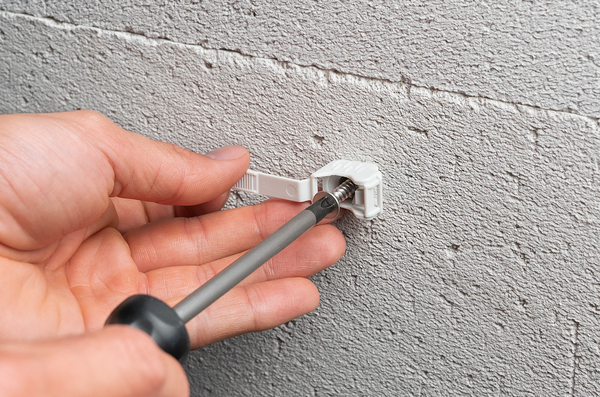

- After drilling, wall plug can be installed directly into the wall without tools (8 mm drill hole)
- Compatible with solid materials (solid brick, concrete bloc...)
- UV-resistant for indoor and outdoor use
- FNT1635 tie and FNTLOK01 wall plug are sold separately or as a kit
- Available colors : gray (RAL7035) and black
- Resealable packaging made from 100% recycled and recyclable cardboard
Show more
Show less
Request quote
More products in this product group:
| Colour | Grey RAL 7035 (RAL7035) |
| Fixation Method | Cable Tie |
| Identification Plate Position | none |
| Material | Polyamide 6.6, high impact modified, UV-stabilised (PA66HIRUV) |
| Mechanical Strength | 320N |
| Min.Tensile Strength | 320N |
| PART DESCRIPTION | FNT1635-PA66HIRUV-GY |
| Package Content | 100pcs. |
| Package Content packed in | box |
| Product Group | FastNTube |
| Releasable Closure (Yes/No) | No |
| Type | FNT1635 |
| UV-Stabilised | Yes |
| Variant | Inside Serrated |
| Weight/Unit | 0.0032kg |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| PEP File Link (FR) | Link |
| ROHS compliant | Yes |
| Specifications |
|
| Country of Origin | FR |
| GTIN-13 / EAN | 4031026745060 |
| Packaging 1 - Height (m) | 0.088m |
| Packaging 1 - Length (m) | 0.232m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | box |
| Packaging 1 - Volume (m³) | 0.003205312m³ |
| Packaging 1 - Weight (kg) | 0.409kg |
| Packaging 1 - Width (m) | 0.157m |
| Packaging 3 - Height (m) | 0.510m |
| Packaging 3 - Length (m) | 0.570m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.1064m³ |
| Packaging 3 - Weight (kg) | 9.236kg |
| Packaging 3 - Width (m) | 0.366m |
| Packaging 4 - Height (m) | 1.45m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 16000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.392m³ |
| Packaging 4 - Weight (kg) | 98.88kg |
| Packaging 4 - Width (m) | 0.8m |
