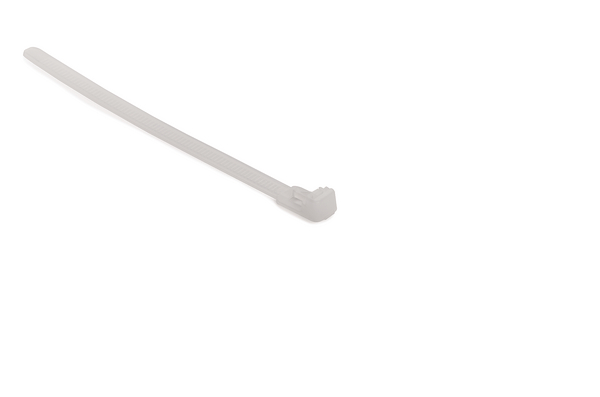

Releasable cable tie, 140.0x7.4mm, ⌀2.5-32.0mm, 225N, natural, 100pcs.


Art.-Nr. 115-00047

| RF140-PA66-NA

 |

Copied
  • Variety of colors are prepared for identification purposes

Application Can be used for temporal bandling, cable identification, and as packing material.
Colour Natural (NA)
Fixation Method Releasable Cable Tie
Identification Plate Position none
Key product features releasable
Material Polyamide 6.6 (PA66)
Min.Tensile Strength 225N
PART DESCRIPTION RF140-PA66-NA
Package Content 100pcs.
Package Content packed in pack
Product Family RF Series
Product Group Releasable tie
Releasable Closure (Yes/No) Yes
Type RF140
Typical Application Can be used for temporal bandling, cable identification, and as packing material.
UV-Stabilised No
Bundle ⌀ 2.5-32.0mm
Bundle ⌀ max. 32.0mm
Bundle ⌀ min. 2.5mm
Cable Tie Head Height (metric) 7.8mm
Cable Tie Head Length (metric) 19mm
Cable Tie Head Width (metric) 11.0mm
Length (L) 140.0mm
Thickness (T) 1.2mm
Width (W) 7.4mm
CE Certification No
CSA Certified No
Flammability UL 94 V2
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Reusable (Yes/No) Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US) No
UL Recognized (US and Canada) No
UL Recognized (US) No
Country of Origin JP
GTIN-13 / EAN 4944387216004
Packaging 1 - Qty 100
Packaging 1 - Type pack
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
