30/09/2025

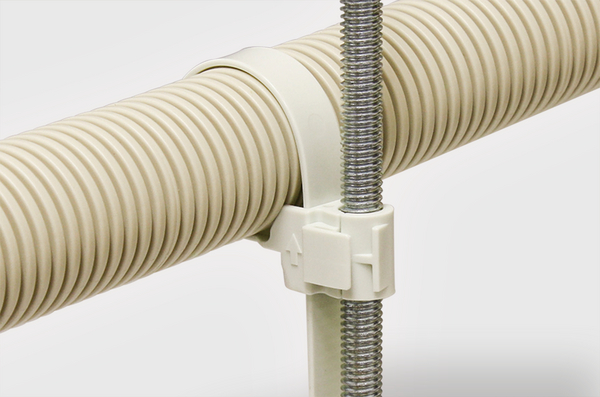

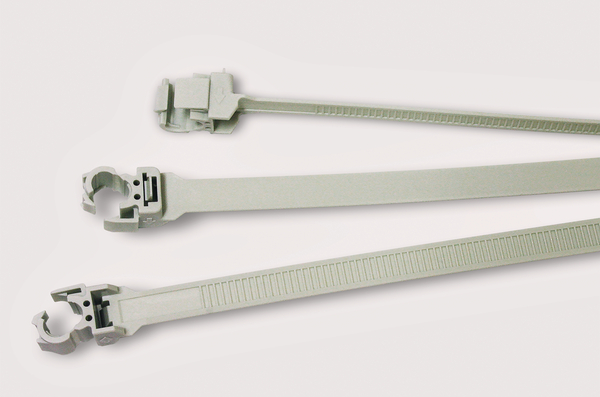

Fixing tie with pipe/tube holder, ⌀10-50.0mm, beige, 50pcs.
Art.-Nr. 111-02477 | BCT225-PA66-BGE |

Copied

    • Large diameter, up to ⌀50 mm, allows various applications and contributes to reduction of parts
    • Applicable to refrigerant tube, heat insulation materials
    • Lever for re-binding, allow you to unlock easily by lowering the lever. It can be used as re-binding or temporary use
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Used for refrigerant tubes, plastic flexible conduit piping and wiring of VVF (Vinyl insulated Vinyl sheathed Flat-type) cables
    Colour Ivory (IV)
    Fixation Method Others
    Identification Plate Position none
    Key product features for multiple routing, removable
    Material Polyamide 6.6 (PA66)
    Min.Tensile Strength 225N
    Mounting Screw Type W3/8
    PART DESCRIPTION BCT225-PA66-BGE
    Package Content 50pcs.
    Package Content packed in bag
    Product Family PA66, releasable
    Product Group Threaded Rod Tie
    Releasable Closure (Yes/No) No
    Type BCT225
    Bundle ⌀ 10-50.0mm
    Bundle ⌀ max. 50.0mm
    Bundle ⌀ min. 10mm
    Length (L) 270.0mm
    Thickness (T) 1.5mm
    Width (W) 13.0mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<br/>Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
    Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.
    Country of Origin JP
    GTIN-13 / EAN 4944387117967
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
