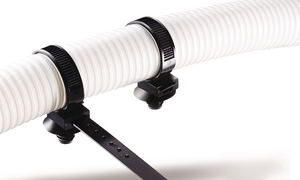

Fixing tie for hole (round), ⌀15-30.0mm, black, 100pcs.
Art.-Nr. 157-00086 | CM170FT11J-PA66W-BK |

Copied
CM170-FT11J-W
Fir tree foot parts can be used for a variety of panel thicknesses.

    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, UV-resistant (PA66W)
    Min.Tensile Strength 250N
    PART DESCRIPTION CM170FT11J-PA66W-BK
    Package Content 100pcs.
    Package Content packed in bag
    Product Family Fir Tree Parts FT11
    Product Group 1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type CM170FT11J
    UV-Stabilised Yes
    Bundle ⌀ 15-30.0mm
    Bundle ⌀ max. 30.0mm
    Bundle ⌀ min. 15mm
    Disc ⌀ 16,0mm
    Length (L) 170mm
    Thickness (T) 1.3
    Width (W) 8.0mm
    for Hole ⌀ (FH) 10.8 - 11.2 mm
    for Panel Thickness min - max 3 - 14 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387959963
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
