04/09/2025

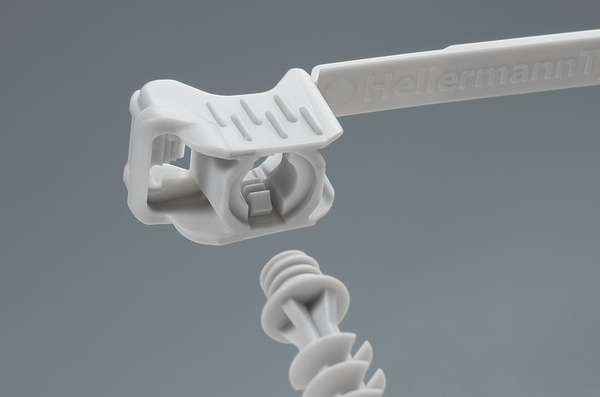

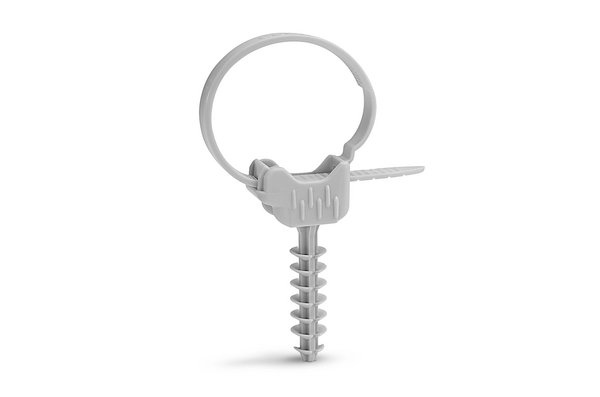

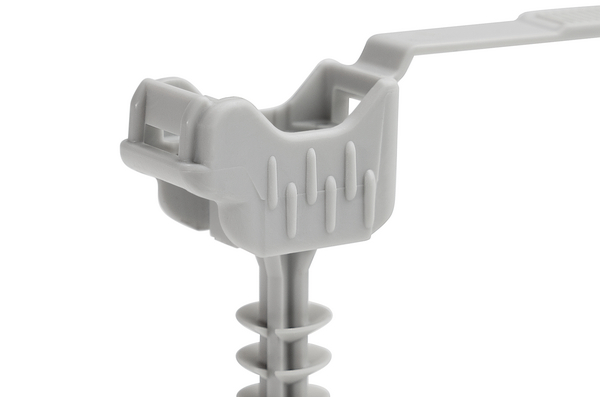

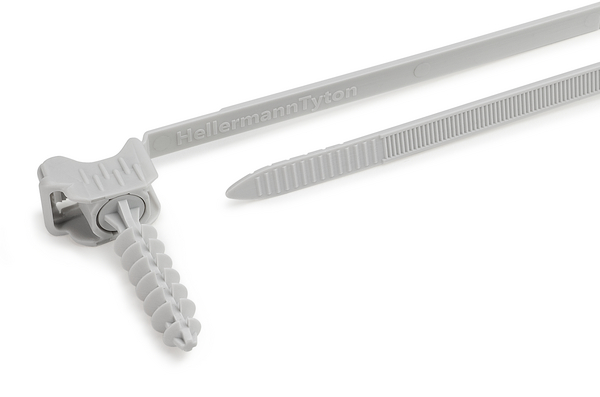

Fixing tie, ⌀16.0-35.0mm, grey, 100pcs.
Art.-Nr. 156-03537 | FNT1635LOK01SET-PA66HIRUV(REC)-GY |

Copied

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable Tie Polyamide 6 recycled (PA6(REC100))
    Colour Grey RAL 7035 (RAL7035)
    Fixation Method Fir Tree
    Identification Plate Position none
    Material Polyamide 6.6 recycled, high impact modified, UV-stabilised (PA66HIRUV(REC))
    Mechanical Strength 320N
    Min.Tensile Strength 320N
    PART DESCRIPTION FNT1635LOK01SET-PA66HIRUV(REC)-GY
    Package Content 100pcs.
    Package Content packed in box
    Product Family Fast'N'Tube ®
    Product Group Fixing tie for drilled holes
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type FNT1635LOK01SET
    UV-Stabilised Yes
    Variant Inside Serrated
    Weight/Unit 0.0047kg
    Bundle ⌀ 16.0-35.0mm
    Bundle ⌀ max. 35.0mm
    Bundle ⌀ min. 16.0mm
    Hole Depth 5.5mm
    Hole Depth 5.5mm
    Length (L) 175.5mm
    Width (W) 7.5mm
    for Hole ⌀ (FH) 8.0 mm
    for Panel Thickness min - max 38
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Limited Fire Hazard No
    ROHS compliant Yes
    Specifications
    Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<br/>ReSource highlights HellermannTyton products that are made from recycled waste or from virgin materials with relatively lower carbon emissions. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
    ReSource highlights HellermannTyton products that are made from recycled waste or from virgin materials with relatively lower carbon emissions.
    Country of Origin FR
    GTIN-13 / EAN 4031026745053
    Packaging 1 - Height (m) 0.088m
    Packaging 1 - Length (m) 0.232m
    Packaging 1 - Qty 100
    Packaging 1 - Type box
    Packaging 1 - Volume (m³) 0.003205312m³
    Packaging 1 - Weight (kg) 0.503kg
    Packaging 1 - Width (m) 0.157m
    Packaging 3 - Height (m) 0.510m
    Packaging 3 - Length (m) 0.570m
    Packaging 3 - Qty 2000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.1064m³
    Packaging 3 - Weight (kg) 11.116kg
    Packaging 3 - Width (m) 0.366m
    Packaging 4 - Height (m) 1.45m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 16000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.392m³
    Packaging 4 - Weight (kg) 113.93kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
