Fixing tie for edge, outside serrated, ⌀1.0-50.0mm, black/silver, 2500pcs.
Art.-Nr. 156-03642
| S50ROSDEC1.5-4SP-1-PP/PA66HIRHS/C75S-BK/SR
|
Copied

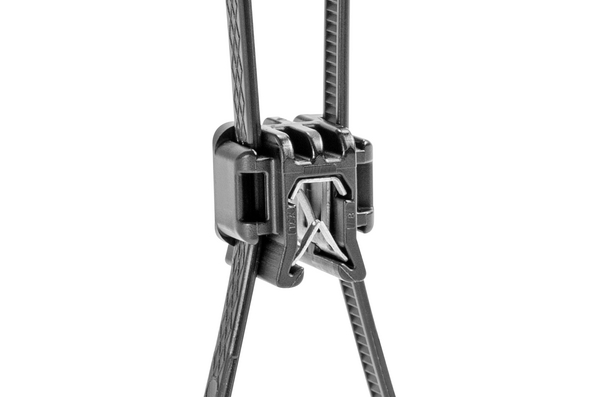

- Pre-assembled 3-piece fixing tie with EdgeClip
- For parallel routing of two harnesses
- The S50ROS features a significantly lower CO₂ footprint compared to cable ties made of standard material, in line with sustainability goals in various industries
- The outside serration design ensures gentle handling of sensitive cables and bundles, reducing the risk of damage during installation and maintenance
- With an anti-slip feature on the inside, the S50ROS prevents undesired lateral movement of cables and bundles, maintaining tidy and organized cable management within vehicles
- For edges of 1.5 - 4.0 mm
Show more
Show less
Request quote
More products in this product group:
This product is part of:
| Application | S-Series cable ties made from Polypropylene (PP) are non hydroscopic, offer a higher chemical resistance and reduced CO2 footprint compared to a standard cable tie material. These cable ties are used to bundle and secure cables, pipes and/or hoses. |
| Colour | Black (BK), Silver (SR) |
| Fixation Method | EdgeClip, sideway, assembled, 2 piece |
| Foot Part | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Identification Plate Position | none |
| Key product features | ergonomic design, for multiple routing, small diameter |
| Material | Polypropylene (PP), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Steel C75S (C75S) |
| Min.Tensile Strength | 185N |
| PART DESCRIPTION | S50ROSDEC1.5-4SP-1-PP/PA66HIRHS/C75S-BK/SR |

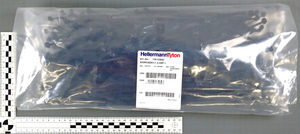

| Package Content | 2500pcs. |
| Package Content packed in | box |
| Product Family | EdgeClip series, 1.5 – 4.0 mm |
| Product Group | Fixing ties for edges |
| Releasable Closure (Yes/No) | No |
| Short Description | 3-Piece Fixing Tie, outside serrated 200 x 4.9 mm, for Edges 1.5-4 mm, for parallel routing, PP/HIRHS-black |
| Tie Closure | plastic pawl |
| Type | S50ROSDEC1.5-4SP-1 |
| Variant | Outside Serrated with AntiSlip Engraving |
| Weight/Unit | 0.004575kg |
| Bundle ⌀ | 1.0-50.0mm |
| Bundle ⌀ max. | 50.0mm |
| Bundle ⌀ min. | 1.0mm |
| Cable Tie Head Height (metric) | 7.5mm |
| Cable Tie Head Length (metric) | 8.3mm |
| Cable Tie Head Width (metric) | 8.95mm |
| Height (H) | 7.5mm |
| Height (H2) | 16.1mm |
| Length (L) | 200.0mm |
| Length (L2) | 15.0mm |
| Panel Thickness | 1.5 - 4.0mm |
| Thickness (T) | 1.45mm |
| Width (W) | 4.9mm |
| Width (W2) | 15.8mm |
| for Panel Thickness min - max | 4 - 1.5 mm |
| ELV compliant (Article 4 - 2) | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +110 °C, (3000 h) |
| PFAS-free | Yes |
| ROHS compliant | Yes |
| Specifications |
|
|
|
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. ReSource highlights HellermannTyton products that are made from recycled waste or from virgin materials with relatively lower carbon emissions. |
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026779393 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.445m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.005607m³ |
| Packaging 1 - Weight (kg) | 0.479315kg |
| Packaging 1 - Width (m) | 0.315m |
| Packaging 3 - Height (m) | 0.538m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 2600 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.1213m³ |
| Packaging 3 - Weight (kg) | 13.46989kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.22m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 20800 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.171m³ |
| Packaging 4 - Weight (kg) | 129.8kg |
| Packaging 4 - Width (m) | 0.8m |
