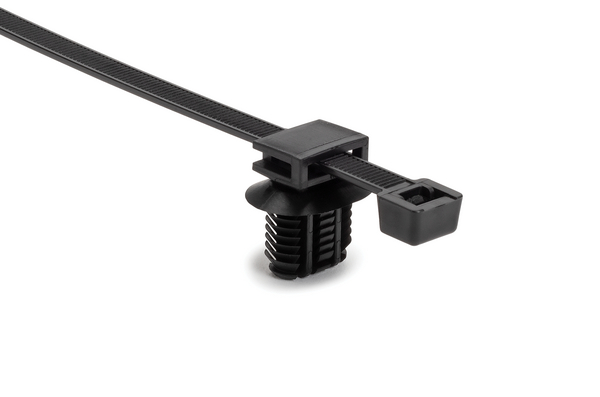

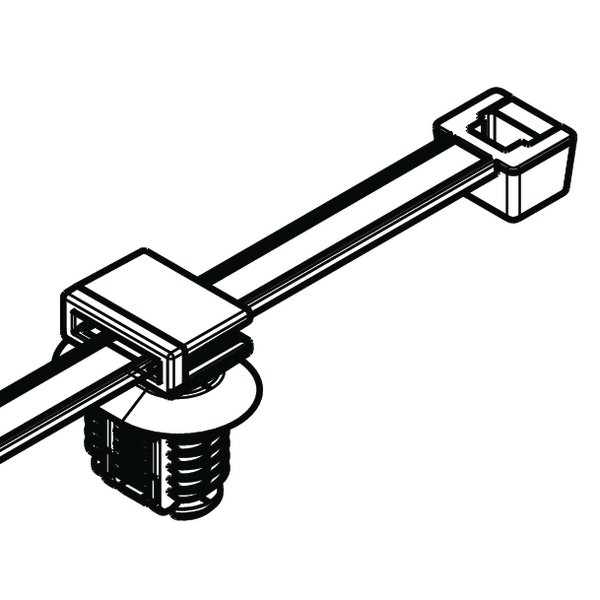

Fixing tie for hole (oval), inside serrated, ⌀5.0-105.0mm, black, 2000pcs.
Art.-Nr. 156-03096 | T120RFT9X17XLGSET-PA66HIRHSUV-BK

Copied

Request your individual offer now

Cable Tie Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Colour Black (BK)
Fixation Method Fir Tree for oval holes
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Min.Tensile Strength 535N
PART DESCRIPTION T120RFT9X17XLGSET-PA66HIRHSUV-BK
Package Content 2000pcs.
Package Content packed in pack
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T120RFT9X17XLGSET
UV-Stabilised Yes
Variant Inside Serrated
Bundle ⌀ 5.0-105.0mm
Bundle ⌀ max. 105.0mm
Bundle ⌀ min. 5.0mm
Height (H) 25.46mm
Height (H2) 14.95mm
Length (L) 385.0mm
Panel Thickness max. 0.6 - 8.9mm
Thickness (T) 1.8mm
Width (W) 7.6mm
for Hole ⌀ (FH) 9.0 x 17.0 mm
for Panel Thickness min - max 0.6 - 8.9 mm
for Panel Thickness min - max 0 - 0.4 "
CE Certification No
CSA Certified No
Flammability UL 94 HB
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
Country of Origin MX
GTIN-13 / EAN 4031026649832
Packaging 1 - Qty 3000
Packaging 1 - Type bag
Packaging 3 - Height (m) 0.219075m
Packaging 3 - Length (m) 0.6064m
Packaging 3 - Qty 2000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0529
Packaging 3 - Weight (kg) 7.6kg
Packaging 3 - Width (m) 0.3984625m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
