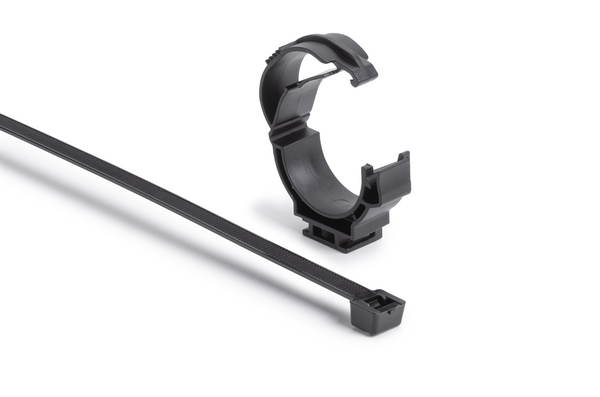

Fixing tie, ⌀25.0-30.0mm, black, 1000pcs.
Art.-Nr. 156-03596 | T120RLOC25-30-SET-PA66HIRHSUV-BK |

Copied

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable ⌀ max 100.0mm
    Cable ⌀ min 10.0mm
    Cable Tie Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T120RLOC25-30-SET-PA66HIRHSUV-BK
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Product Group 2-Piece Fixing Ties with Pipe Clip
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T120RLOC25-30-SET
    Variant Inside Serrated
    Attach to ⌀ 25.0 - 30.0
    Attach to Diameter 0.98 - 1.18 "
    Bundle ⌀ 25.0-30.0mm
    Bundle ⌀ max. 30.0mm
    Bundle ⌀ min. 25.0mm
    Bundle Diameter Nom. (ND) 25.0 mm - 30.0 mm
    Depth (D) 15.0mm
    Height (H) 44.6mm
    Length (L) 387.0mm
    Length (L2) 63.6mm
    Min.Tensile Strength 535N
    Width (W) 15.0mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026754390
    Packaging 1 - Qty 1000
    Packaging 1 - Type carton
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121731
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
