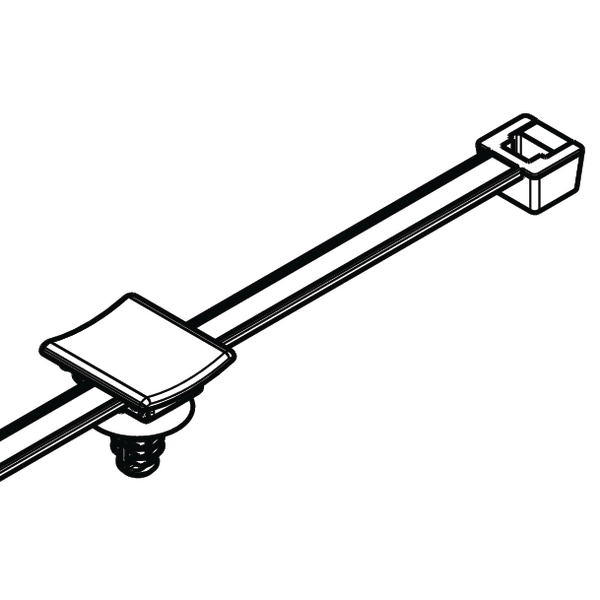

Fixing tie for hole (round), inside serrated, ⌀5.0-55.0mm, black, 1000
Art.-Nr. 156-04211
| T120SFTM8SET-PA66HIRHSUV-BK
|
Copied
Request quote
| Cable Tie | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Colour | Black (BK) |
| Fixation Method | Fir tree for round holes |
| Identification Plate Position | none |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Min.Tensile Strength | 535N |
| PART DESCRIPTION | T120SFTM8SET-PA66HIRHSUV-BK |
| Package Content | 1000 |
| Package Content packed in | pack |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T120SFTM8SET |
| UV-Stabilised | Yes |
| Variant | Inside Serrated |
| Bundle ⌀ | 5.0-55.0mm |
| Bundle ⌀ max. | 55.0mm |
| Bundle ⌀ min. | 5.0mm |
| Height (H) | 22.77mm |
| Height (H2) | 11.52mm |
| Hole Depth | 0.6mm |
| Hole Depth | 6.0mm |
| Length (L) | 229.0mm |
| Panel Thickness | 0.6 - 6.0mm |
| Thickness (T) | 1.8mm |
| Width (W) | 7.6mm |
| for Hole ⌀ (FH) | 6.0 - 6.9 mm, M8 Threaded |
| for Panel Thickness min - max | 0.6 - 6 mm |
| for Panel Thickness min - max | 0 - 0.2 " |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | US |
| GTIN-13 / EAN | 4031026690674 |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | bag |
| Packaging 3 - Height (m) | 0.20955m |
| Packaging 3 - Length (m) | 0.5175m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0344m³ |
| Packaging 3 - Weight (kg) | 4.32kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Qty | 40000 |
| Packaging 4 - Type | pallet |
