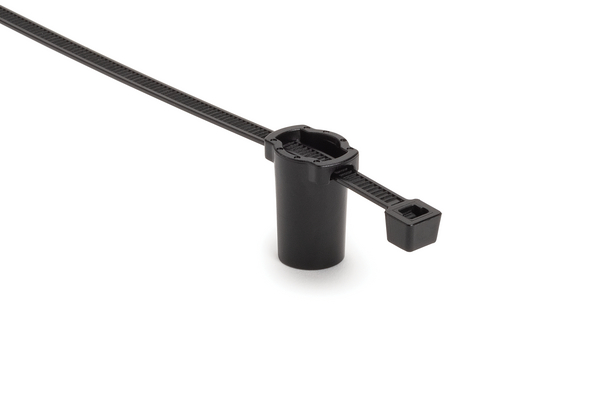

Fixing tie for stud, ⌀4.0-50.0mm, black, 2000pc.
Art.-Nr. 156-01574
| T50R0SBS6UM90SET-PA66HIRHSUV/POM-BK
|
Copied
Request quote
| Cable Tie | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Colour | Black (BK) |
| Fixation Method | Stud Mount |
| Identification Plate Position | none |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Polyacetal (POM) |
| Min.Tensile Strength | 225N |
| PART DESCRIPTION | T50R0SBS6UM90SET-PA66HIRHSUV/POM-BK |
| Package Content | 2000pc. |
| Package Content packed in | bag |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T50R0SBS6UM90SET |
| UV-Stabilised | Yes |
| Weight/Unit | 0.003012kg |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, -30 °C to +90 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026543642 |
| Packaging 1 - Type | bag |
| Packaging 3 - Height (m) | 0.20955m |
| Packaging 3 - Length (m) | 0.5175m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0344m³ |
| Packaging 3 - Weight (kg) | 6.644kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Height (m) | 1.209m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 40000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.161m³ |
| Packaging 4 - Weight (kg) | 154.88kg |
| Packaging 4 - Width (m) | 0.8m |
