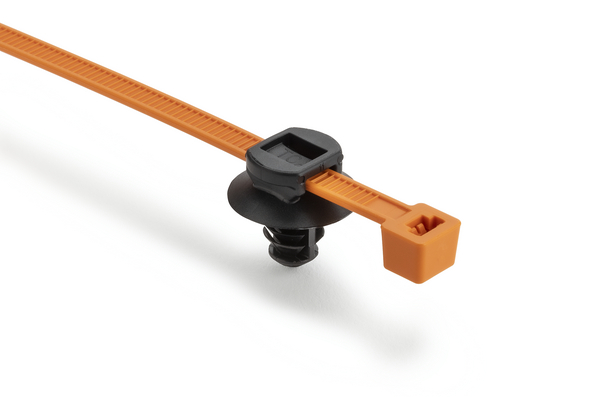

Fixing tie for hole (round), inside serrated, ⌀2.0-50.0mm, orange/black, 5000pcs.
Art.-Nr. 156-04028 | T50RFT6ASET-PA66HIRHS/PA66HIRHSUV-OG/BK |

Copied
These fir tree fixings can also be used in threaded, blind holes.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable Tie Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Colour Orange (OG), High Voltage (HV), Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Min.Tensile Strength 225N
    PART DESCRIPTION T50RFT6ASET-PA66HIRHS/PA66HIRHSUV-OG/BK
    Package Content 5000pcs.
    Package Content packed in pack
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RFT6ASET
    UV-Stabilised Yes
    Variant Inside Serrated
    Bundle ⌀ 2.0-50.0mm
    Bundle ⌀ max. 50.0mm
    Bundle ⌀ min. 2.0mm
    Disc ⌀ 16.0mm
    Height (H) 16.4mm
    Height (H2) 16.4mm
    Length (L) 203.2mm
    Panel Thickness max. 0.6 - 3.5mm
    Strap Width max. (G) 0.20"
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    Width (W2) 16.0mm
    for Hole ⌀ (FH) 6.1 - 7.1 mm
    for Panel Thickness min - max 0.6 - 3.5 mm
    for Panel Thickness min - max 0 - 0.1 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Recognized (US) No
    Country of Origin US
    GTIN-13 / EAN 4031026665726
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Width (m) 0.2921m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
