29/03/2024

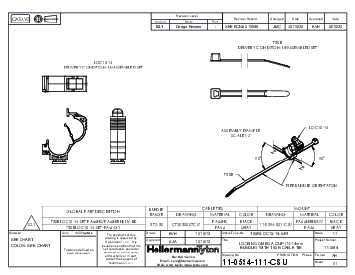

Fixing tie with pipe/tube holder, inside serrated, Ø10.0-14.0mm, black, 3000pcs.
Art.-Nr. 156-01092 | T50RLOC10-14-SET-PA66HS/PA66HIRHSUV-BK Details

Request your individual offer now

Cable ∅ max 50.0mm
Cable ∅ min 5.0mm
Colour Black (BK)
Content 5000 T50R + 5000 LOC10-14
Fixation Method Omega Clip
Identification Plate Position none
Key product features rotatable, for multiple routing, removable
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Pack Cont. 3000pcs.
Package Content packed in carton
PART DESCRIPTION T50RLOC10-14-SET-PA66HS/PA66HIRHSUV-BK
Product Group 2-Piece Fixing Ties with Pipe Clip
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (metric) 14.0mm
Bundle Diameter Nom. (ND) 10.0 mm - 14.0 mm
Bundle ∅ 10.0-14.0mm
Bundle ∅ min. 10.0mm
Depth (D) 12.0mm
Height (H) 27.4mm
Length (L) 27.6mm
Length (L2) 20.6mm
Min.Tensile Strength 225N
Weight/Unit 0.00396kg
Width (W) 12.0mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +110 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) Yes
Country of Origin MX
Customs Number 39269097
GTIN-13 / EAN 4031026462967
Packaging 3 - Height (m) 0.3730625m
Packaging 3 - Length (m) 0.587375m
Packaging 3 - Qty 3000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.063
Packaging 3 - Weight (kg) 12.7kg
Packaging 3 - Width (m) 0.2873375m
Packaging 4 - Height (m) 1.263m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.212
Packaging 4 - Weight (kg) 173.4kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121702

Request your individual offer now
