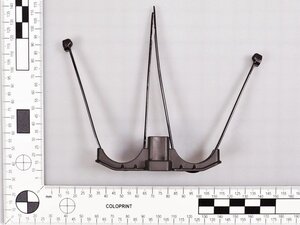

Fixing tie for cable bundles/for stud, outside serrated, ⌀8.0-26.0mm, black, 200pcs.
Art.-Nr. 156-03175 | T50ROSCTMD26SB5-6-PA66HS/PA66HIRHS-BK |

Copied

    This product is not available anymore.

    Alternative product available

    • Oval housing for welding studs enables tolerance compensation during assembly
    • Supports a wider range of cable diameters for parallel bundling
    • Cable tie head can be repositioned for ideal alignment with the cable bundle
    • ‘Soft-push’ design enables effortless, tool-free manual assembly by hand
    • Integrated retaining rib secures corrugated cables (e.g. protective conduits) and provides additional stability and protection in dynamic environments
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application With our new “WAVE FIXING” products, we meet the increasing demand of parallel cable routing for electric vehicles.
    Colour Black (BK)
    Identification Plate Position none
    Key product features for multiple routing
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Min.Tensile Strength 225N
    PART DESCRIPTION T50ROSCTMD26SB5-6-PA66HS/PA66HIRHS-BK

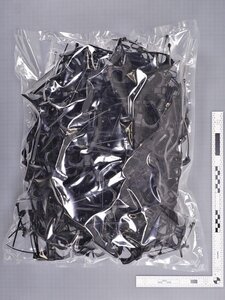

    Package Content 200pcs.
    Package Content packed in bag
    Product Family multi parallel routing, outside serrated
    Product Group Fixing ties for weld studs
    Type T50ROSCTMD26SB5-6
    Weight/Unit 0.007687kg
    Bundle ⌀ 8.0-26.0mm
    Bundle ⌀ max. 26.0mm
    Bundle ⌀ min. 8.0mm
    Height (H) 21.0mm
    Length (L) 78.0mm
    Length (L2) 200.0mm
    Stud ⌀ 5.0 mm, 6.0 mm
    Width (W) 30.0mm
    Width (W2) 4.6mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+125 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026711775
    Packaging 1 - Height (m) 0.14m
    Packaging 1 - Length (m) 0.48m
    Packaging 1 - Qty 200
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.024864m³
    Packaging 1 - Weight (kg) 1.580997kg
    Packaging 1 - Width (m) 0.37m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
    Art.-Nr.: 156-03175 Contact
