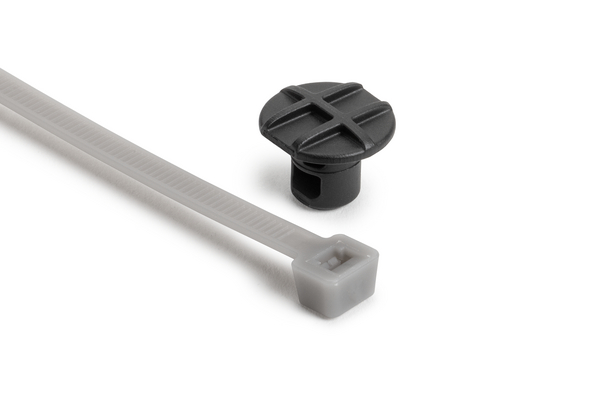

Fixing tie for cable bundles, inside serrated, ⌀8.0-50.0mm, grey/black, 1000pcs.
Art.-Nr. 156-03429
| T50RPBM9SET-PVDF/PA66HIRHSUV-GY/BK
|
Copied
- High-impact-modified, heat-resistant, UV-stabilised material is ideal for long-term performance in extreme weather
- Capable of holding several cables, depending on cable tie size used, for ultimate flexibility
- Zero-insertion-force design requires no tools for quick and easy mounting to most solar modules
- Withstands tracker movement to prevent chafing of wires
- Plastic solution adding security for 1500V DC systems
Show more
Show less
Request quote
More products in this product group:
| Application | This button head mount includes a T50R tie in a kit to secure cables and wire bundles on solar modules and mounting structures. The mount conveniently fits existing oval (9x14mm) and round holes (9-12mm) with zero insertion force. Made from impact-modified, heat-resistant, UV-stabilised polyamide 6.6, which is specifically formulated for extreme environments. The mount is designed to withstand movement, particularly on single-axis tracker systems, for years of dependable performance. |
| Cable Tie | Polyvinylidene Fluoride (PVDF) |
| Colour | Grey (GY), Black (BK) |
| Fixation Method | Button Head |
| Identification Plate Position | none |
| Material | Polyvinylidene Fluoride (PVDF), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Material Head | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Min.Tensile Strength | 225N |
| PART DESCRIPTION | T50RPBM9SET-PVDF/PA66HIRHSUV-GY/BK |
| Package Content | 1000pcs. |
| Package Content packed in | bag |
| Product Family | Button Head Cable Ties |
| Product Group | 2-piece fixing ties with button mount, for round holes |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T50RPBM9SET |
| UV-Stabilised | Yes |
| ⌀ (D2) | 17.0mm |
| ⌀ D2 | 0.67" |
| Bundle ⌀ | 8.0-50.0mm |
| Bundle ⌀ max. | 50.0mm |
| Bundle ⌀ min. | 8.0mm |
| Cable Tie Head Length (metric) | 7.3mm |
| Cable Tie Head Width (metric) | 7.6mm |
| Height (H) | 13.40mm |
| Hole Depth | 3.0mm |
| Length (L) | 200.0mm |
| Panel Thickness | 3.0mm |
| Strap Width max. (G) | 0.30" |
| Thickness (T) | 1.2mm |
| Width (W) | 17.0mm |
| for Hole ⌀ (FH) | 9.0 mm, 9.0 x 12.0 mm, 9.0 x 14.0 mm |
| for Panel Thickness min - max | - 3 |
